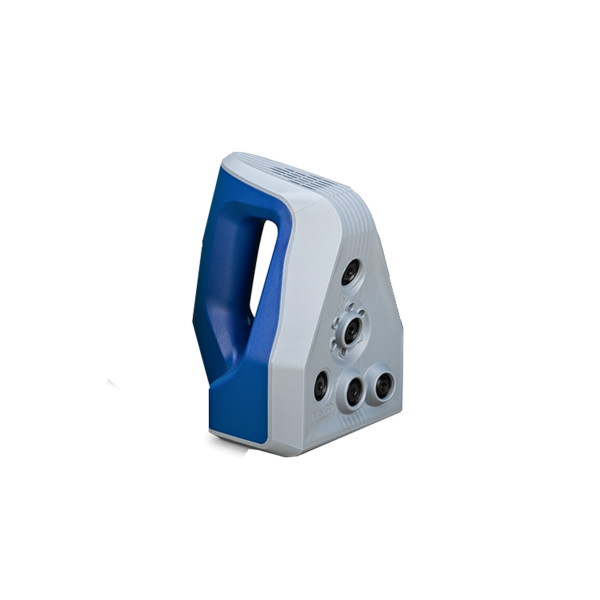

Artec Space Spider 3D Scanner

Capture fine details with high accuracy and precision using the Artec Space Spider. Unrivalled in it's scanning quality, it is proven to scan fast and in very high resolution, while being very easy to use.

Request a quote

Compare now

iMakr Verdict:

The Artec Space Spider is an industrial 3D scanner designed for scanning small objects with high accuracy. This makes it useful for product design, quality control and reverse engineering applications. The temperature stabilisation and industrial grade electronics provide long term repeatability. It is fully portable and lightweight, with USB connectivity making it compatible with tablets and laptops, and an optional battery pack for full mobility.

Key Features:

  • Speed
    Capturing 1 million data points a second the Artec Space Spider is capable of scanning small objects with high detail quickly.
  • Enhanced Accuracy System
    Scan points up to 100 microns apart with an accuracy of up to 50 microns to capture intricate details and fine features.
  • Portability
    With only two cables and weighing only 850g, the Space Spider is lightweight and can be moved around freely. The optional battery pack offers full portability.
  • Versatility
    Due to it's small size and compact design, the Space Spider can be used for all different kinds of objects, specialising in those that are on the smaller side

Artec Space Spider 3D Scanner

Whether you want to scan for medical purposes, industrial quality control, or reverse engineering, the Space Spider can be easily assimilated into your specialized solution.

Artec Space Spider 3D Scanner Portable

Use the Artec Space Spider to scan small areas, capturing intricate detail with great precision.

Space Spider CGI

CGI: Digitally capture a person or object to create a 3D CG model for use in visual effects

ART00013

Data sheet

Scan size
90 x 70 mm (Closest)180 x 140 mm (Furthest)
Weight
0.85 kg
Scanning Technology
Structured light
Scanning time
7.5 frames per second, 1 million points per second
Light Source
Blue LED
Dimensions
190 x 140 x 130 mm
File Output Format
OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB
Scan Resolution
Up to 100 microns
Scan Accuracy
Up to 50 microns
Scanning Software
Artec Studio
Power Supply
12v, 24w
Working Distance
0.2 - 0.3 m
Texture Resolution
1.3 mp
Warm up Time
3 mins
Connectivity
USB
Software Compatibility
Windows 7, 8 or 10 - x64, i5 or i7, min 18gb ram, graphics card
