BCN3D Sigmax R19

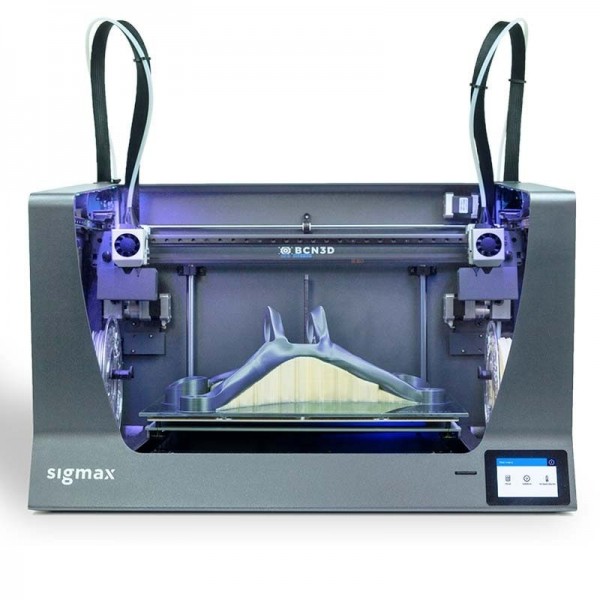

The BCN3D Sigmax R19 is a reliable and easy-to-use desktop machine with advanced new features that let it work harder for all users. With an Independent Dual Extruder System that delivers high-resolution multi-material parts in a simple and effective way, this is a highly professional workhorse machine.


$4,299.00
Tax excluded
Quantity

Compare now

Sharper details. Accurate prints


iMakr's Verdict:

This machine is a reliable and easy-to-use desktop 3D Printer, equipped with one of the most powerful extrusion systems with a unique IDEX architecture that delivers high-resolution, multi-material parts in a simple and effective way. The new hotends have been developed with devoted engineering and manufacturing knowledge of e3Dand the results are high-quality and smooth precision printing every time. The Sigmax R19 offers two modes available: Duplication and Mirror Mode. Mirror mode allows users to print reflected objects in two halves which can be assembled together to create a whole unit hasten production time. Duplication mode simply allows you to print two identical prints at the same time. Perfect for time sensitive projects. It's huge build volume is a bonus.






Key Features:

  • IDEX- Independent Dual Extruder System: Independence is Great. The unique Independent Extrusion System allows users the freedom for two new print modes: Duplication Mode and Mirror Mode. The idle extruder remains astray to avoid dripping molten plastic and ruining that perfect print.



independent dual extruders

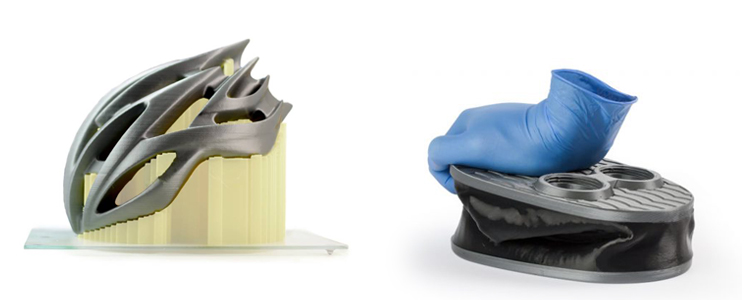

  • Multi-colour or multi-material printing: Flexible or rigid? Black and red? Why not both? Create functional parts by combining the properties of two different materials, like rigid and flexible filaments. Soluble matter isn't an issue either. Just watch it dissolve away and reveal perfection.multi-material printing
  • High-tech dual drive gears by Bondtech™: With more control and more power, the new dual drive is one of the best systems and gets rid of any grinding issues while using any material. They are made with aluminium body and hardened steel drive gears.




  • Interchangeable nozzles: Choose your Weapon. Various nozzle sizes to choose from depending on your work particularities. The special 0.5mm hotend is manufactured with hardened stainless steel ideal for use with abrasive materials and gaining that high performance you need.

  • Efficient printing modes: Two new highly productive printing modes: mirror and duplication. These modes allow to print the same model or its symmetrical with both toolheads simultaneously, and consequently, double the production capacity.





  • Improved User-interface: Smooth operation starts with the interface. An improved, full-colour touchscreen gives users total access to operation of their printer. Smooth operation for smooth operators.
imakr-2244

Data sheet

Printing Technology
FDM
Build Volume W x D x H (mm) // W x D x H (inch)
420mm x 297mm x 210mm
Extruder
2 Independent Dual Extruder
Layer Thickness / Print Precision
0,05 – 0,5mm(depending on the nozzlediameter)
Nozzle Diameter (mm)
0,3mm / 0,4mm / 0,5mm (Special) /0,6mm (Standard) / 0,8mm / 1,0mm
Operating Temperature
15°C – 35°C
Certification
CE / FCC
Material
PLANYLONPET-GABSTPUPVACompositesOthers
Nozzle Temperature
up to 290°C
Power Consumption
370W
Heated Platform
Max 100°C (PCB)
XY Positioning Accuracy
1,25 / 1,25 (microns)
Operating System
Windows, Mac, Linux
File Input Format
STL, OBJ, AMF
Weight Volume (kg) // (lbs)
20 kg
