EinScan Pro 2X Plus Reverse Engineering Design Bundle

An all-in-one solution from Shining 3D for seamless reverse engineering design of medium to large objects.

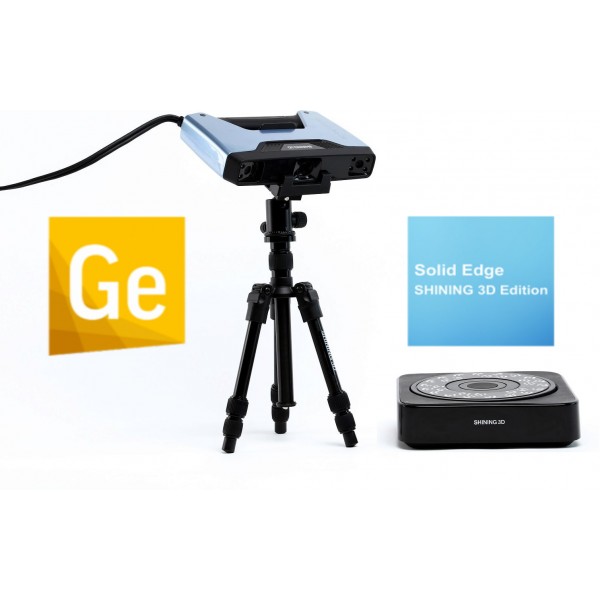

The EinScan Pro 2X Plus Reverse Engineering Bundle includes:

  • EinScan Pro 2X Plus Scanner
  • Tripod
  • Turntable
  • GeoMagic Essentials Software
  • Solid Edge - Shining3D Edition
Request a quote
Compare now

iMakr Verdict

SHINING 3D has partnered with 3D Systems and Siemens to bring the latest all-in-one solution for reverse engineering. Scan medium to large objects with the EinScan Pro 2X Plus multi-functional handheld 3D scanner in Fixed or Handheld modes to get high-quality 3D data. Easily convert 3D scans to CAD with the Geomagic Essentials software. Prepare the design for 3D printing and manufacturing with Solid Edge SHINING 3D Edition CAD software.

The EinScan Reverse Engineering Design Bundle offers a complete solution for designers and engineers to make the reverse engineering design process as easy and seamless as possible.


Scan to CAD Reverse Engineering Workflow

Reverse Engineering Workflow

EinScan Pro 2X Plus + Industrial Pack

EinScan Pro 2X Plus

The EinScan Pro 2X Plus scanner is a highly portable and versatile 3D scanner with even higher efficiency and accuracy than ever. It is the ideal scanning solution for medium to large sized high resolution models.

EinScan Industrial Pack

The Industrial Pack enables Fixed Scan mode, which can be used with or without the turntable to achieve high accuracy and details of scanned 3D objects.

Geomagic Essentials

Essentials-Bridge Crop.png

The essential bridge between 3D scanning and design - Extract and edit features and shapes from scan data for further processing.

Scan Processing

Point cloud and mesh editing

  • Directly edit and manipulate Scan data
  • Fill holes for water-tight mesh models
  • Reduce the number of triangles to make a smaller file size

Precise Alignment

Precise Alignment

  • Manage multiple scan sessions to easily complete complex projects
  • Easily translate the scan to logical CAD orientation

Feature Extraction

Feature Extraction

  • Extract CAD perfect Shapes from the Scan data
  • Compare design features to reference Scan data for accuracy analysis
  • Easily create curve or line-arc cross section for direct CAD usability

Nurbs Surfacing

Nurbs Surfacing

  • Draw and trace complex features to generate curves for reference and modeling aids
  • Convert to a solid format to interact with as-is geometry
  • Import all geometry into the Native CAD package for a familiar modeling environment

Siemens Solid Edge Shining3D Edition

Solid Edge Shining3D

Manipulate and redesign scanned parts with parametric Siemens Solid Edge Shining3D Edition CAD modelling software

Convergent Modelling

Convergent Modelling

Seamlessly combine traditional “b-rep” solid models with triangular mesh models without time-consuming and error-prone conversions.

Simulation

Simulation

Accurately simulate models to reduce the number of physical prototypes and further reduce time and cost.

Generative Design

Generative Design

Create the optimum design between weight and strength using topology optimization (Upgrade to Premium version)

Additive Manufacturing

Additive Manufacturing

Export part models to 3D Printers using the 3D Print command.
