EnvisionTEC | EPIC

The EnvisionTEC EPIC resin is developed to manufacture molds for castables and jewellery.

$414.00
$372.60 Save 10%

($372.60 per kilo)

Tax excluded
Quantity

Compare now

The EnvisionTEC EPIC resin

The EnvisionTEC EPIC resin is highly recommended for special order retail and other jewellery customers who need flexibility between large and small pieces and have top-level quality control in casting. The EPIC resin is an Exceptional Plastic Investment Casting material. The material holds a low wax content, containing only 8% liquid wax. EPIC allows for results similar to EnvisionTEC's wax-free PIC material. It is stiff with crisp details with outstanding surface finish. The main difference between EPIC and PIC material is the wax content. It gives EPIC the opportunity of additional flexibility up to 12 grams, where PIC only allows for up to 5 grams finish weight.

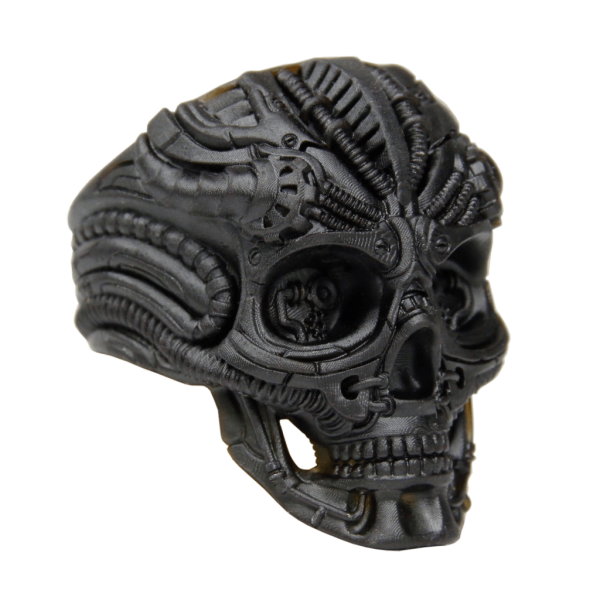

Applications: Jewellery

Material Properties
ASTM MethodDescriptionValue
DIN EN ISO 527-1 Tensile Strength 16.8 MPa
DIN EN ISO 527-1 Elongation at Break 7.46%
DIN EN ISO 178 Flexural Strength 23 MPa
DIN EN ISO 178 Flexural Modulus 404 MPa
DIN 1342-2 Viscosity 361,7 mPa's
DIN EN ISO 178 Bending Strain 10.2%
DIN EN ISO 180 Izod Impact - Notched 11.03 kJ/m2
DIN EN ISO 1183-1 Density 1.178 g/cm3
DIN EN ISO 868 Hardness Shore D 69
DIN 53765 Ignition Temperature 350° C
EnvisionTEC

Data sheet

Tensile Strength
16.8 MPa
Flexural Strength
23 MPa
Flexural Modulus
404 MPa

Specific References
