EnvisionTEC | RC Series

The EnvisionTEC RC Series is a series of highly reliable materials with individual formulas, designed for the users particular needs. The material is tough and offers high resolution printing.


($497.00 per kilo)

Tax excluded
Choose your formula

Compare now

The EnvisionTEC RC Series Resins

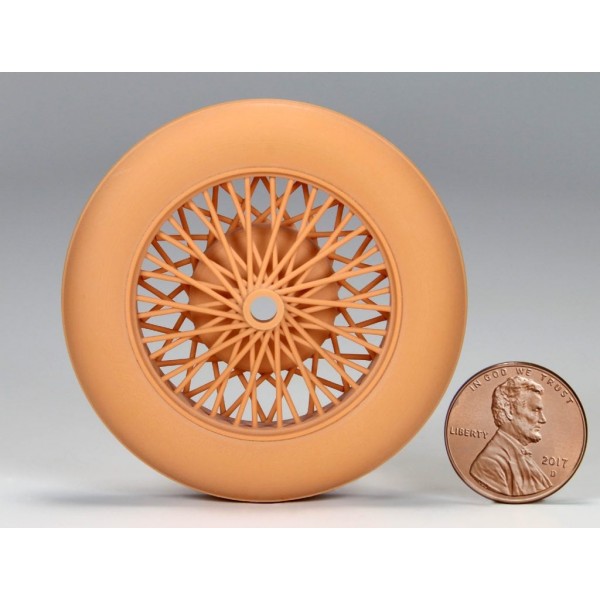

The RC Series resins are a line of photosensitive resins containing ceramic particles that produce tough and stiff parts at very high resolutions. The very resistant material can withstand high temperatures and are the best choice for silicone molding, pump housings, blades, test parts for wind tunnels, light reflectors and various automotive applications. The different resins offered in this range can be used for high detail jewellery and animation applications and can be finished with painting or plating.

Applications: Entertainment, Jewellery, Consumer Goods, Education, Manufacturing

Material Properties
DescriptionRC25/ RC30RC31RC70RC90
Tensile Strength 46 MPa 35.4 MPa 39 MPa 38 MPa
Elongation at Break 2.5% 2.5% 2.9% 2.7%
Flexural Strength 102 MPa 102 MPa 106 MPa 104 MPa
Flexural Modulus 3860 MPa 3860 MPa 3760 MPa 3800 MPa
Izod Impact - Notched 0.0016 KJ/m² 0.0016 KJ/m² N/A N/A
Hardness Shore D 93.1 93.1 N/A N/A
Heat Deflection Temperature 0.46 MPa at 67° C 0.46 MPa at 67° C 0.46 MPa at 93° C 0.46 MPa at 73° C
1.81 MPa at 53.6° C 0.46 MPa at 53.6° C N/A N/A
