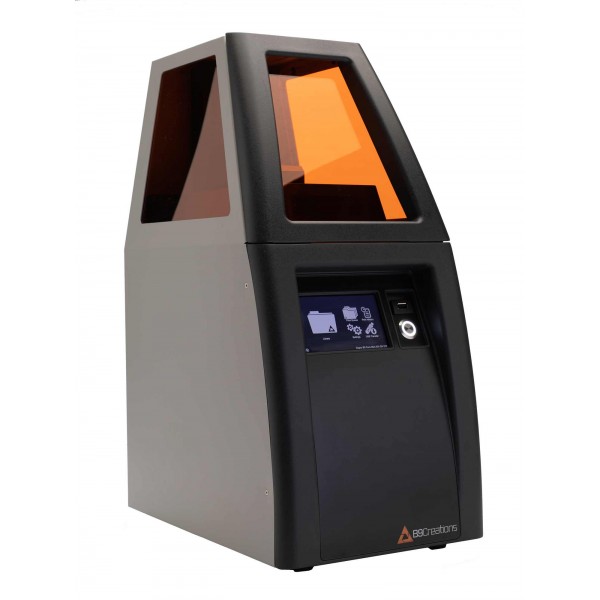

B9 Core Med 500

Building on the successes of the B9 Core series in the Jewellery, prototyping and model-making industries, B9Creations are now looking to shake up the Medical industry with their B9 Core Med 500 3D printer. With IEC 60601-1 and IEC 6061-1-2 medical equipment compliance, the B9 Core Med 500 is sure to become the new standard in medical-grade 3D printing.

Tax included
Available to order. Delivery within 2-3 weeks

Compare now
iMakr Verdict :

B9Creations is already a big name in the Jewellery industry and now with the B9 Core Med 500 they are bringing their patented technology to the medical field. The B9 Core Series is known for its ease-of-use, precision and speed, and the B9 Core Med adds the additional benefit of being certified IEC 60601-1 and IEC 60601-1-2 medical equipment compliant, making it an ideal solution for applications such as prototyping and production of medical devices, creating accurate training models and producing customised jigs, tools and fixtures for laboratory environments. Already a valued tool by companies such as Proctor and Gamble, 3M and B. Braun Medical Inc., the B9 Core Med 500 is setting a new standard in high-precision, medical-grade 3D printing.

Key Features :
Easy To Use

Start printing within 15 minutes of unpacking. No calibration required.

Made In The US

Engineered with input from industry experts in manufacturing and healthcare to obtain IEC 60601-1 and IEC 60601-1-2 medical equipment compliance. Built in world-class manufacturing facilities in the USA.

Medical device printed by the B9 Core Med 500

Anatomical model printed by the B9 Core Med 500 with BioRes - Red and white resins

Compatible With High-Quality Resins

Compatible with the BioRes Series of biocompatible resins - ISO 10993 certified for prolonged skin contact - as well as strong and durable Rugged Nylon 6 resin. The B9 Core Med 500 is also compatible with suitable third-party resins.

Intuitive, Powerful Software

Intelligent print preparation, management, and monitoring software, B9 Create is included with free lifetime updates.

Streamline Your Workflow

Take advantage of the full range of post-processing options available from B9Creations to optimise your workflow and keep your workspace clean. Print, clean and cure your models quickly, easily and with minimal handling.

B9 Core Med 500 with post processing accessories

Learn more about how the B9 Core Med 500 can benefit your laboratory, clinic or design studio by calling the telephone number at the top of the page, or requesting a call back from one of our advisors via the button below:

Request a callback

Data sheet

Printing Technology
Build Volume W x D x H (mm) // W x D x H (inch)
103 x 58 x 130 mm // 4 x 2.3 x 5.1 inch
Layer Thickness / Print Precision
10 micron minimum
21kg (46lbs)
Material type
B9Creations Resins & 3rd Party Materials
XY Resolution
53.6 µm
267 x 420 x 593 mm (10.5 x 16.5 x 23.5 inch)
File Format
Wi-Fi, Ethernet & USB drive
Printer Software
B9Create included with lifetime updates
Software Compatibility
MacOS, Windows 7+, Linux
Input Voltage / Power
12VDC 5A
Shipping Dimensions
470 x 620 x 800 mm
Shipping Weight
50kg (110lbs)
