DWS XFAB 3500HD
  • DWS XFAB 3500HD

DWS XFAB 3500HD

The DWS XFAB 3500 HD is an advanced SLA 3D printer that offers high speed and high precision results. Building into the XFAB series, the XFAB 3500 HD is ideal for jewellery, dentistry, and industrial design and offers a full range of DWS professional materials.
$25,200.00
Quantity
Available for order. Dispatch within 3-4 weeks.

Compare now

Outstanding models in high speeds: The DWS XFAB 3500HD




iMakr's Verdict:

The DWS XFAB 3500HD is an advanced SLA 3D printer that produces some of the highest quality, detail-orientated models. It's leading desktop SLA printing into professional-grade additive manufacturing for everyone with its industrial laser technology at a reasonable price point. It is able to reach a quality close to the top range printers, with a precision/productivity ratio very convenient for demanding jewel manufacturers. The XFAB 3500HD is compatible with the complete range of DWS materials.


Key Features:

  • Stereolithography 3D printer
  • Working area 140x140x180 mm
  • Full range of DWS professional materials for jewellery
  • Integrated computer
  • Simple and intuitive interface
  • Compact design for desktop use
  • Printer with “Plug and Play” USB connection.
  • Automatic heating system and material temperature control
  • BluEdge® proprietary laser
  • No calibration required
  • Simplified support removal, with no risk of model damage
  • Wide range of importable 3D formats

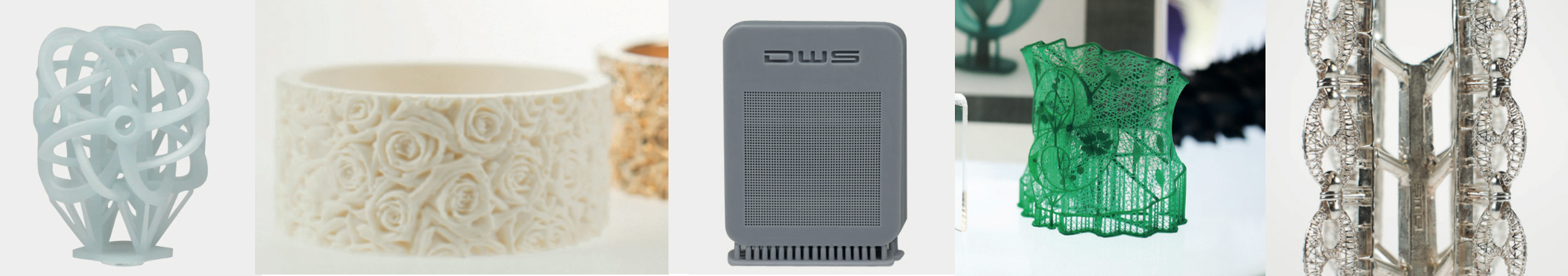

Use the ENTIRE range of the DWS professional materials



Materials for Direct Casting:

  • Fusia DC300
  • Fusia DC400
  • FusiaDC500
  • Fusia DC550
  • Fusia DC710
  • Fusia DC800


Materials for Rubber Moulds:

  • Therma DM210
  • Therma DM220
  • Precisa DL260



Materials for Direct Jewellery Printing:

  • Irix Black
  • Irix White
  • Irix Ivory
  • Irix Coral
  • Irix Verde


Materials for Aesthetic Models:

  • Precisa DL260








Data sheet

Printing Technology
SLA
Build Volume W x D x H (mm) // W x D x H (inch)
140x140x180 mm
Layer Thickness / Print Precision
10-100 microns (depends on the kind of material used)
Light Source
Solid State BluEdge®
Dimensions
400 x 606 x742 mm (desktop)
Special Features
No calibration required, Wide range of importable 3D formats
File Input Format
.stl, .slc, .nauta, .fictor, .mkr, .3dm, .3ds, .ply, .obj, .lwo,
Connectivity
USB and internet connection
Printer Software
Fictor® XFAB Edition, Nauta® XFAB Edition

Specific References
