EnvisionTEC | E-Shell 300 Series

The E-Shell 300 Series resin is is especially proficient in printing parts for the Hearing Aid Industry.


($379.00 Per kilo)

Tax excluded
Choose your colour

Compare now
  Finance payment options available for items over $1000

Contact us for more details


Free shipping on orders over $500 to mainland US


Free lifetime remote support on all products

EnvisionTEC E-Shell 300 Series

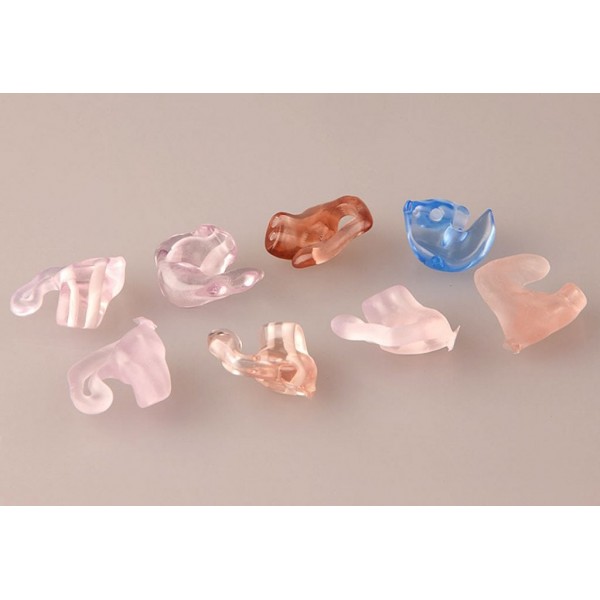

The EnvisionTEC E-Shell 300 Series resin is specifically designed for applications in the Hearing Aid industries and is distinguished for rigidity and durableness. The resin should only be used on Perfactory UV machines. The E-Shell 300 Series is a liquid, photo-reactive acrylate, perfect for building functional parts. The material is CE certified and Class IIa biocompatible according to ISO 10993 (Medical Product Law) for Hearing Aid shells and otoplastics. The resin is tough, opaque, water- and perspiration-resistant and is available in multiple transparent tones like water clear, rosé clear, red and blue.

Applications: Hearing Aid, Medical Devices

Key Features
  • Tough function prototypes
  • Appearance models with minimal finishing
  • Durable concept models with high cross linkage
  • High humidity environment applications
  • RTV patterns
  • Water resistant applications
  • Hearing aid devices manufacturing
Material Properties
ASTM MethodDescriptionValue
DIN EN ISO 527-1 Tensile Strength 51.6 MPa
DIN EN ISO 527-1 Elongation at Break 6.62%
DIN EN ISO 178 Bending Strain 8.43%
DIN EN ISO 178 Flexural Strength 1920 MPa
DIN ISO 178 Flexural Modulus 88.4 MPa
DIN ISO 180 Izod Impact - Notched 4.99 kj/m2
DIN ISO 1183-1 Density 1.185 g/cm3
DIN 134202 Viscosity 368 cP at 30° C
DIN EN ISO 868 Hardness Shore D 85
D570-98 Glass Transmission Temperature 86° C - 160° C

Data sheet

Tensile Strength
51.6 MPa
Flexural Strength
1920 MPa
Flexural Modulus
