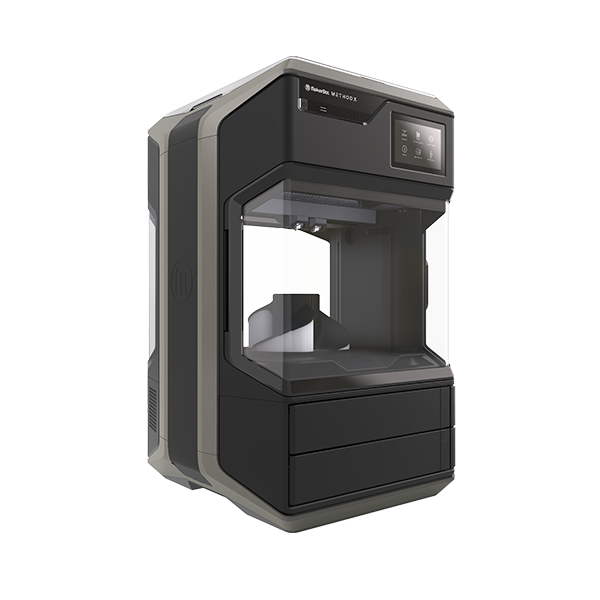

MakerBot Method X Carbon Fibre Edition

Print in carbon fibre reinforced nylon and the full range of industrial engineering materials easily with the MakerBot Method X Carbon Fibre edition and its 110°C heated build chamber. Achieve high accuracy and high strength in all dimensions.

$6,999.00
Tax excluded
Quantity
Available to order.

Compare now


Free shipping on orders over $500 to mainland US



Free lifetime remote support on all products

logo

MakerBot Method X Carbon Fibre Edition

Print in carbon fibre reinforced nylon and the full range of industrial engineering materials easily with the MakerBot Method X Carbon Fibre edition and its 110°C heated build chamber. Achieve high accuracy and high strength in all dimensions. With clever features such as the remote sensors, dual extruder and controlled heated chamber, the MakerBot Method will guarantee you part dimensional accuracy of ± 0.2mm (± 0.007in). All of this can be achieved from your office thanks to the compact size and innovative safety features of the MakerBot Method machine.


All material options

Contact iMakr for information on the full range of technical materials available for the MakerBot Method and MakerBot Method Carbon Fibre Edition 3D Printers


MakerBot Method X Carbon Fibre Edition

Produce strong, heat resistant parts ideal for structural and metal replacement applications.

Strength to weight ratio- 10 MPa tensile strength ideal for lightweight applications such as robotics

Engineering grade stiffness- 7600 MPa tensile modulus ideal for structural applications such as brackets and inspection parts.

Heat resistance under load- 184°C HDT ideal for optimal tooling applications

Carbon fibre end use part


heated build chamber

Key Features

Utilise the innovative features of the MakerBot Method to produce high quality and highly accurate carbon fibre manufacturing grade parts in engineering materials.

Heated Build Chamber control the temperature to 110°C to achieve the optimum material properties

Part geometric freedom-  Use Stratasys SR-30 soluble supports to dissolve your part supports in a very mild NaOH solution. Ideal for printing parts with internal cavities without compromising on overall part quality and accuracy

Sealed filament Bays- Keep your engineering material dry to ensure a high print quality, accuracy and reliability.

Dual Performance Extruders-  Perfect for speed and dimensional accuracy, each extruder features a sensor that detects and remotely alerts you when a material is running low or is jammed during the printing process. The 19:1 dual-drive gear ratio keeps material loaded and give reliable material extrusion.



For further information and advice on how MakerBot 3D Printers and filaments can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Build Volume W x D x H (mm) // W x D x H (inch)
19 L x 19 W x 19.6 H cm / 7.5 x 7.5 x 7.75 in single extrusion | 15.2 L x 19 W x 19.6 H cm / 6.0 x 7.5 x 7.75 in dual extrusion
Nozzle Diameter (mm)
0.4mm
Dimensions
43.7 L x 41.3 W x 64.9 H cm / 17.2 x 16.3 x 25.6 in
Layer resolution
20-400 microns
