MiiCraft for Dental

£ 13,200 Tax incl. (tax excl.: £ 11,000.00)

Available for order. Dispatch within 3 weeks.

- +

The MiiCraft Y series offers high precision prints that can do the job of industrial equivalents three times the price. The printer's 385nm wavelength projector is well most appropriate for dental applications and functions with most available dental resins. Choose the build volume that best suits your particular printing requirement.

More details

Product Details Back to top

DIGITAL DENTISTRY WITH MIICRAFT 3D PRINTERS

iMakr's Verdict
The MiiCraft Y series printers use SLA-based DLP technology to produce detailed 3D prints from a vat of resin. With the 385nm wavelengths, the printer is using UV light to cure most available dental resins. Furthermore this technology allows the printing of clear resins.

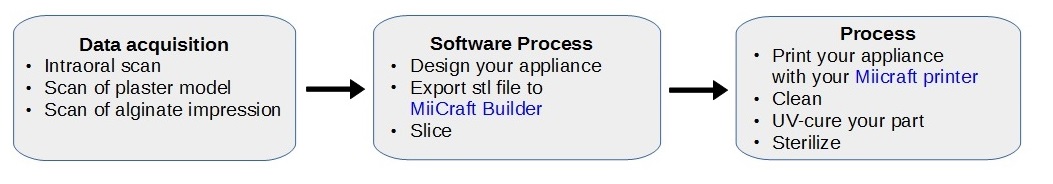

Integrate the MiiCraft into your practice

Integrating the MiiCraft printer into your digital workflow is easy and seamless.

Simply design your appliances with your own dental software as normal and, instead of sending off the files to a laboratory for production, use your MiiCraft to print within your practice. Your appliances will be ready within a much shorter time frame and at a fraction of the cost saving you time and money.


Bed size and accuracy

The MiiCraft printer is available with a range of build volumes, associated XY resolutions and projector wavelengths allowing you to choose the machine best suited to your application.

Miicraft 150Miicraft 125Miicraft 100Miicraft 80Miicraft 50
Max build size(mm)150x84.4x120125x70x120100x57.5x12080x45x12057x32x120
Resolution XY (micron)78655341.530

For productivity: with the 150, print 3 stones within 1h30.
For accuracy: with the 80, achieve 42 um XY resolution.
For balance: with the 125, print 1 stone as well as surgical guide.


Resin compatibility and wavelength

The 385 nm wavelength of the Miicraft Y series is compatible with a wide range of third party biocompatible resins. Though MiiCraft does produce its own brand of resins, the company does not lock you to their own label consumables like other brands. You can choose from nearly all the latest biocompatible materials for dentistry iincluding:


Recommendations by appliance type

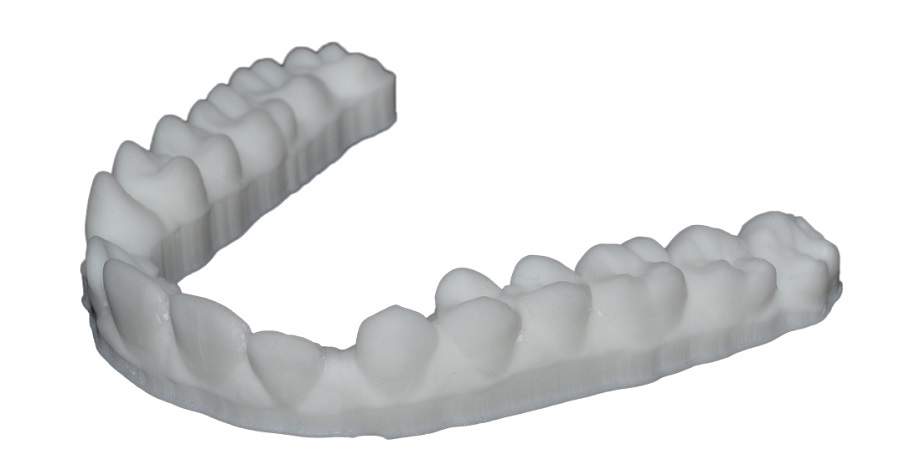

Thermoforming model for clear aligner
Print your dental models. Use your vacuum forming to make your clear aligners.
Recommended Solution

Miicraft 150
MiiCraft Dental Model BV 005
NextDent Model Ortho

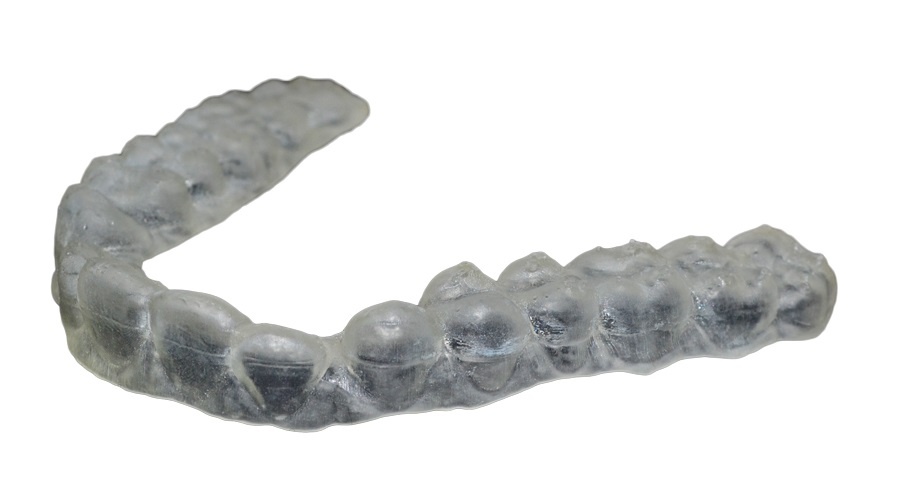

Direct clear aligner

Use clear biocompatible Class IIa materials with a high strength, fracture and wear resistance. With your software, design each aligner you need for your patient's treatment.
Recommended Solution

MiiCraft 125
GR-10
NextDent Ortho Clear

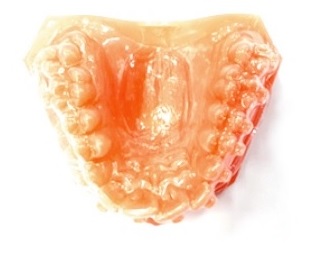

Thermoforming model for indirect bonding tray

With your software, select position of each bracket of your patient's bonding tray. Print your model with the tie-wings. Use your vacuum forming to make your clear aligners. Glue all your brackets in one time and save up chair time.
Recommended Solution

MiiCraft 150
MiiCraft Dental Model BV 005
NextDent Model Ortho

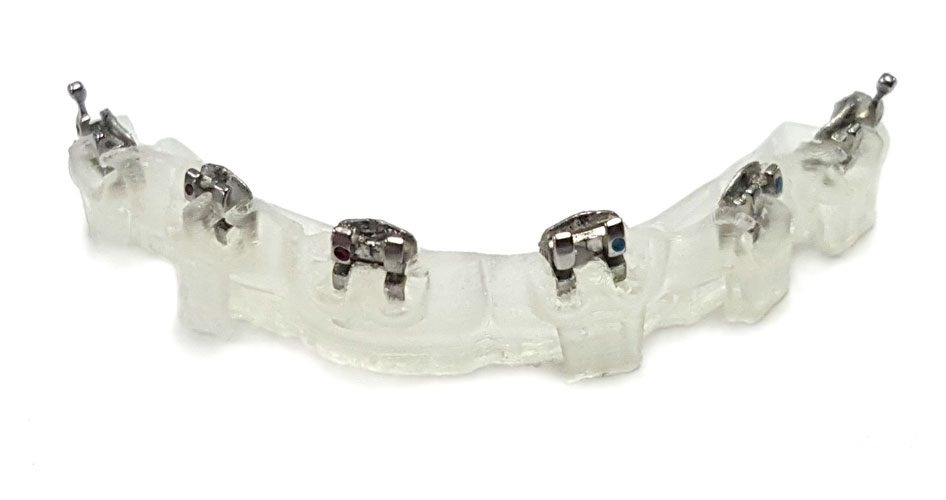

Indirect bonding tray
The clear resin is a biocompatible Class I material. With your software, select position of each bracket of your patient's bonding tray. Glue all your brackets in one go and save up chair time.

Recommended Solution

MiiCraft 125
NextDent Model Ortho IBT

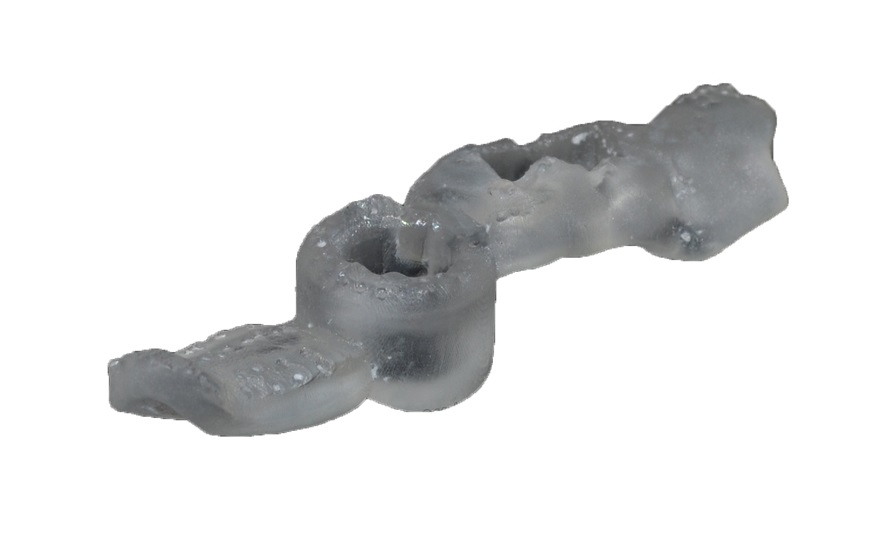

Surgical guides

Use Class I or Class IIa clear materials. These materials are sterilized by autoclave or desinfectant. Design and print many surgical guides with high precision.
Recommended Solution

MiiCraft 80 - MiiCraft 100
GR10
NextDent SG

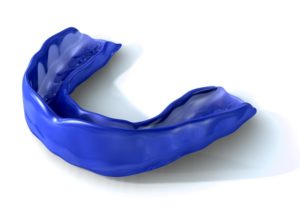

Sport/mouth Guard
Use Class I material.
Recommended Solution

MiiCraft 150
NextDent Ortho Rigid

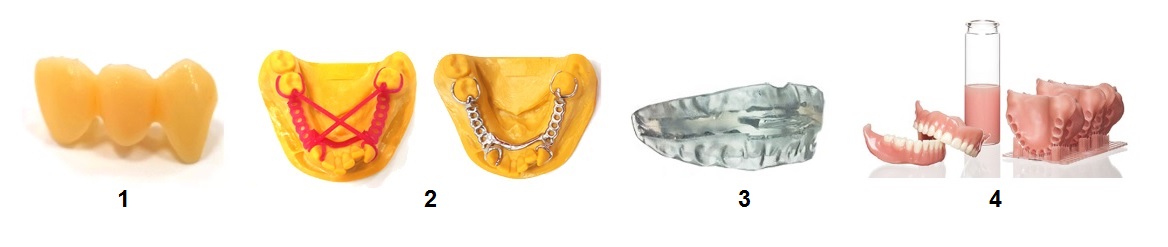

And more applications such as:

Bridge (1), Stellite (2), Night Guard for Bruxism (3), Temporary Denture (4)...
