MiiCraft 125 Series View larger

MiiCraft 125 Series

£ 8,690 Tax incl. (tax excl.: £ 7,241.66)

Available for order. Dispatch within 2-3 weeks.

- +

The MiiCraft 125 series offer high precision prints at a price more than 3x cheaper than their industrial equivalents. The printer is available with a range of build volumes and projector wavelengths. The 365/385nm wavelength is best suited to Dental/Medical applications where clear prints are required. The 405nm wavelength is best suited to printing models and castable resins for jewellery.

More details

Product Details Back to top

iMakr's Verdict

The MiiCraft 125 printer uses SLA-based DLP technology to produce detailed 3D prints from a vat of resin.
With the 365/385nm wavelengths, the printer uses UV light to cure the resin. This allows the printing of clearer
resins than possible with 405nm technology. The 385nm wavelength is best suited to dental and medical applications,
while the as 365nm is best for microfluidics. If your application is jewellery-related required to obtain highly detailed
prototypes, the 405nm would be well suited for you.




Models

The MiiCraft 125 series is available with a range of build volumes, associated XY resolutions and projector wavelengths allowing you to choose the machine best suited to your application.


Model5080100125150
Build Volume
XYZ		57 x 32 x 120 mm80 x 45 x 120 mm102 x 57.5 x 120 mm125 x 70 x 120 mm150 x 84.4 x 120 mm
Resolution30 μm41.5 μm53 μm65 μm78 μm

  365nm - X series

Best suited to Microfluidics applications as UV light is able to cure transparent resins with far reduced cloudiness compared to visible light projectors.


 385nm - Y series

Uses a UV projector with the wavelength that is standard for the Dental industry for making clear parts. This makes it great for making aligners, surgical guards and others.


  405nm - Z series

The 405nm series uses a visible light projector making it best suited to opaque and translucent resins, used for product design applications. This makes it ideal for printing castable resins for jewellery.


Standard Features

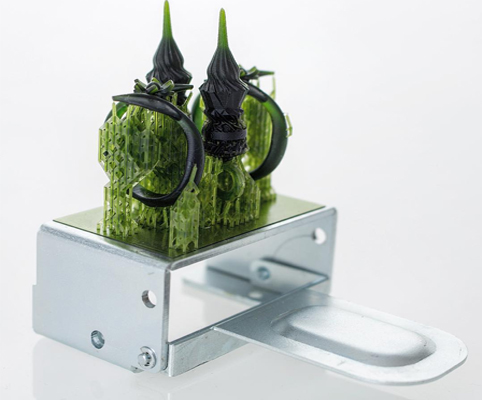

MiiCraft Necklace

Accurate Prints

High resolution DLP chip and sophisticated optics
produce accurate layers that turn into accurate printed objects.







MiiCraft Jewellery


User Friendly

Powerful easy to use software gives the user full control of
the printing parameters to ensure the best quality prints.

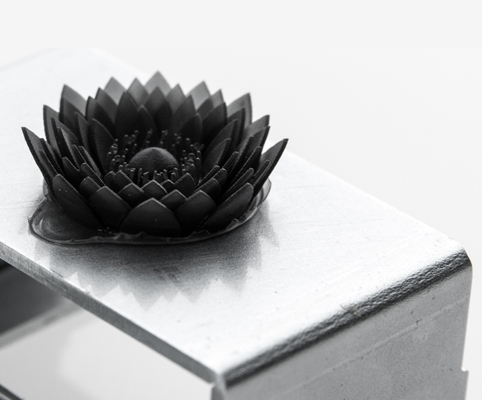

Miicraft Lotus Flower



Versatile

Compatible with a wide range of resins, giving you the freedom
to make what you want. This includes 3rd party resins.






In The Box

  • MiiCraft printer
  • RJ-45 Cable
  • Tray for resin tank
  • Power cable
  • Putty knife
  • Scraper
  • Picker
  • User manual and quick start guide
For more information on our range of MiiCraft 3D printers please give us a call.
Miicraft

Technical Specifications Back to top

ManufacturerMiicraft
Printing TechnologySLA / DLP
Weight37.5 kg
Material typeResin
Light SourceFull HD LED Projector
Dimensions43 x 43 x 59 cm
Layer Thickness (microns)Minimum 5 μm
Advertised Manufacturer MaterialSolid / Transarent / Castable / Biocompatible
Slicing SoftwareMiiUtility
File Input FormatSTL
Power Supply100~240V AC, 2A, 50/60Hz
ConnectivityUSB / Ethernet
Software CompatibilityWindows 7 & newer
