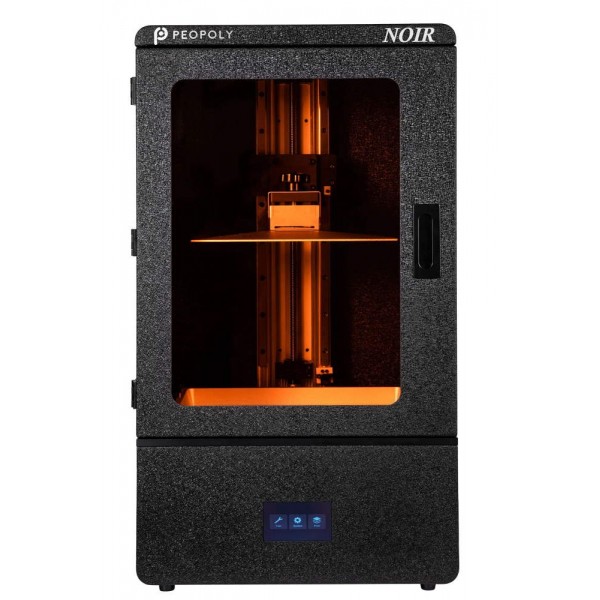

Building on the success of their highly-anticipated Phenom printer, the latest addition to the Phenom range is designed to print large-scale models at faster speeds. The Peopoly Phenom Noir utilises a monochrome LCD panel to significantly reduce UV light waste to print up to 100% faster than the standard Phenom printer. Retaining the open resin system of the standard Phenom and with a 13% larger build volume, the Phenom Noir is a great addition to any design office or prototyping workshop.
Key Features of the Peopoly Phenom Range:
Unlike the Moai printers, the Phenom range uses MSLA technology which utilises an LED array light-source and an LCD photomask. Similarly to DLP, the layer image is displayed as square pixels. Individual pixels are deactivated on the LCD in order to allow light from the LED array to pass through and photo-cure the resin. Instead of the layer being traced by a laser - as used in the SLA Moai printers - each layer is printed in one flash (exposure), thus significantly reducing the print time.
ChituBox Slicing Software
The Peopoly Phenom range utilises the popular and well-established ChituBox slicing software. Useful features include: Auto-arrangement of models on the build plate, automatic and manual support structure generation, model editing such as Hollowing - which is great for reducing the amount of resin used and improving print reliability.
The Phenom range is designed and built with future upgrade options in mind. It's modular design ensures that it will be compatible with future upgrades and add-ons such as cooling or lighting systems.
The Deft resin has been developed by Peopoly to be ideally suited to the specifications of the Phenom range and LCD printing. Designed to be cured with lower energy requirements, it can print larger objects faster.
The Phenom is also compatible with other suitable third-party 405nm UV resins.
Fast, Large-scale Resin Printing with the Peopoly Phenom Noir
To find out more about the Peopoly Phenom range of 3D printers please request a callback by clicking the link below, or call the contact telephone number at the top of this page:
- Printing Technology
- Build Volume W x D x H (mm) // W x D x H (inch)
- 292 × 165 x 400mm
- Material type
- Peopoly Deft range and any suitable 405nm third-party resins
- XY Resolution
- 3840 x 2160 pixels (UHD 4K)
- 465 x 370 x 780 mm
- File Format
- STL, OBJ, AMF
- USB, Ethernet
- Printer Software
- Software Compatibility
- Windows, MacOS, Linux
- Shipping Dimensions
- 910 x 580 x 510 mm
- Shipping Weight
