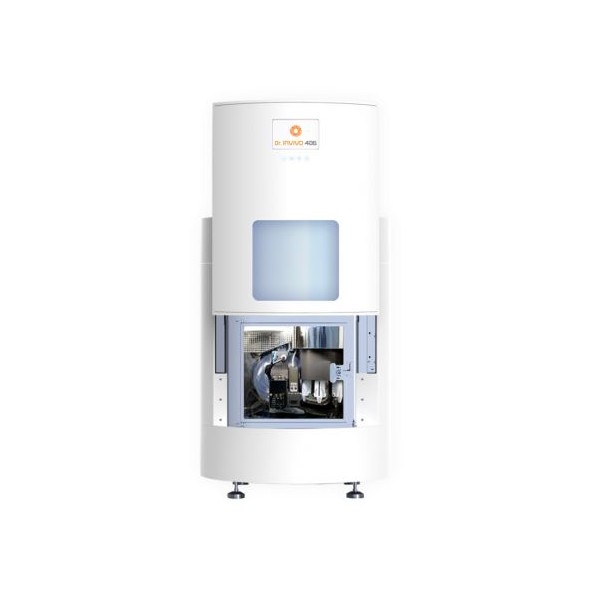

Rokit Dr. INVIVO 4D6

The next generation bioprinting technology, the 4D6 guarantees optimal cell growth environment. Dr. INVIVO 4D6 features a built in cell incubator and controlled chamber temperature, CO2 and humidity levels. Also features Clean Chamber Sterilization and auto bed levelling. Available in three different packages.

Request a quote
Rokit Dr. INVIVO 4D6
Compare now

Logo

Rokit Dr. INVIVO 4D6

The next generation bioprinting technology, the 4D6 guarantees optimal cell growth environment. With innovative features designed to make your bioprinting as easy and successful as possible. Available in either Standard, Upgrade or Premium Packages.


4D6 bin medical lab

Rokit Dr. INVIVO 4D6 At A Glance

Chamber temperature control between 4°C - 40°C

6 modular print heads for 6 different cell types or materials

Sterile chamber

Cell incubator controls temperature, humidity and CO2

Up to 384 well plate printing

20X built in scope allowing for quality evaluation of scaffolds


Printing cells

4DS app

Rokit Healthcare APP

Key Features in Detail

Clean chamber- Keeps the cells safe with a H14 HEPA filters and circular flow system. A UV-C germicide light and a low temperature plasma system is also included to keep the cells safe and meet medical requirements.

Auto bed levelling and nozzle end alignment- No need to disturb the cells environment by constantly opening the chamber door, the Dr. INVIVO 4D6 uses ultrasonic sensors to auto pilot the process. The bed levelling and nozzle alignment is done automatically by the printer.

6 Modular printheads with individual control- As human cells are not made of one type Rokit have incorporated 6 modular print heads each with its own unique pressure and temperature control.

Built in microscope with fine scale visualisation- Use the built in microscope to monitor your prints and a smartphone to keep an eye on the cells up to 80X resolution.

High-throughput with low errors- Capable of dispensing 96 well-plate assays, this high-throughput liquid handler and high precision linear robot drastically reduces human error and reduces time consumption compared to manual pipetting.

State of the art operating system- Designed to make machine operation as simple as possible whilst maximising the results. Controlled by the built in touch screen as well as PC software. It is accessible by WiFi, ethernet and USB cable connections. The software is also on a mobile app, allowing you to monitor and control your  Dr. INVIVO 4D6 from your mobile.


Standard Package

Standard package

Printing Bed. Embedded Incubator. Syringe Dispenser. Filament Extruder.

Upgrade Package

Upgrade package

Printing Bed. Embedded Incubator. Syringe Dispenser. Filament Extruder.

Premium Package

Premium package

Printing Bed. Embedded Incubator. Syringe Dispenser. Filament Extruder. Hot-Melting Dispenser.


Possible Applications Based on the Individual Features of the 4D6

Chamber Temperature Control Collagen, Gelatin, Matrigel, Hyaluronic Acid, Alginate, Silk, Cellulose, Pluronic, Agrose
6 Modular Printheads Cardiac patch. Lung tissue. Organ-on-a-chip. Food Printing. Pharmaceutical Tablets.
Sterile Chamber In-hospital manufacturing of patient customised tissues and regenerative patches.
Cell Incubator Studies of stemness maintenance and cell differentiation in a controlled 3D culture environment.
Well-Plate Printing Safer development of vaccine assays using highly contagious and harmful forms of pathogens. Controlled dispensing of small volumes of mixed materials.
80X Built-in Scope Creation of complex biological systems with surface modifications and pore sizes. Development of personalised machines with precise controlled pore size and different rates.


For further information and advice on how Rokit can benefit your Lab or Clinic, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Printing Technology
Filament extruder X 1EA, Hot-melting pneuatic dispense X 1EA, Syringe pneumatic dispense X 5EA + NFC Tagging system 1EA
Build Volume W x D x H (mm) // W x D x H (inch)
80 x 80 x 85 mm
Printing Speed
50mm/s
Printing Temperature
-4 to 60°C
