Sinterit Lisa 2
  • Sinterit Lisa 2

Sinterit Lisa Pro

The Sinterit Lisa Pro is a benchtop SLS 3D printer capable of producing industrial, high quality prints in a new larger build space and a Nitrogen Chamber enabling the ability to experiment with.

With every purchase, iMakr offers premium online and telephone support as well as in-depth training and sample prints so we can ensure you are getting the most out of your printer to drive business.

$15,490.00
Tax excluded
Quantity
Dispatch within 6-8 weeks

Compare now

More industrial possiblities brought to the desktop from the Lisa 2 Pro

The Lisa 2 Pro is a powerful new machine that brings bigger, industrial parts to the desktop. Print completely without supports in surgeon precision detail for all prototypes, products, and models. Thanks to its Nitrogen Chamber, the Lisa 2 Pro allows users to experiment with a completely new range of materials while still being compatible with PA12 smooth, PA11, Flexa Black, and Flexa Grey.


Sinterit Lisa Pro SLS Printer


How does SLS technology work?

Using Selective Laser Sintering technology, powder is loaded into a feed bed and spread layer by layer onto the build platform. The build chamber is heated to warm the powder, and a laser etches the powder in a similar way to SLA. The powder holds the print in place, removing the need for support material, and increasing the design freedom of the part.


KEY FEATURES:

  • Surgeon-like precision: 0.1 mm Min. detail size on objects
  • Bigger build size: Size does matter when you can print up to up to 316 mm diagonally
  • Sleek and aesthetic design: Keeping the black and red theme, the Lisa 2 Pro fits in nicely with your workbench

  • Durable, moveable parts: 41 MPa Tensile Strength with no supports needed in one piece; ready for use off the printer

  • Experimental Nitrogen Chamber: Allows user to create and experiment with their own formulas



  • New Software: Sinterit Studio 2018 is a smart and simple dedicated software for preparing your models






Printing Recommendations:

  • Gloves and a respirator are required for working with powdered plastic.
  • Parts require cleaning after printing, this can be done using an air compressor and blow gun, sandblasting or brushes and metal tools.
  • Sand blasting can be used to clean parts but may destroy fragile parts.
  • Printed parts may be very delicate if they are too thin.
  • Printed parts may warp due to cooling if printed parallel to the print bed, rotate parts to avoid this.
  • Some powder can be reused using a sieve, but printing with old powder may cause weak brittle prints if it is not refreshed properly.


Sinterit
SINT00008

Data sheet

Printing Technology
SLS
Recommended min. wall thickness
from 0.4 mm (0.015 in.)
Colour
Black/Red
Weight
90kg (198lbs)
Material
Refresh ratio: from 0-50% depending on the material
Material type
Powder PA11, Powder PA12 smooth, Powder Flexa black, Powder Flexa gray, Nitrogen use materials
Z-axis Layer Thickness
[min-max]: 0.075-0.175 mm (0.003-0.007in.)
Dimensions
690 x 500 x 880 mm (27.1 x 19.7 x 34.6 in.)
Special Features

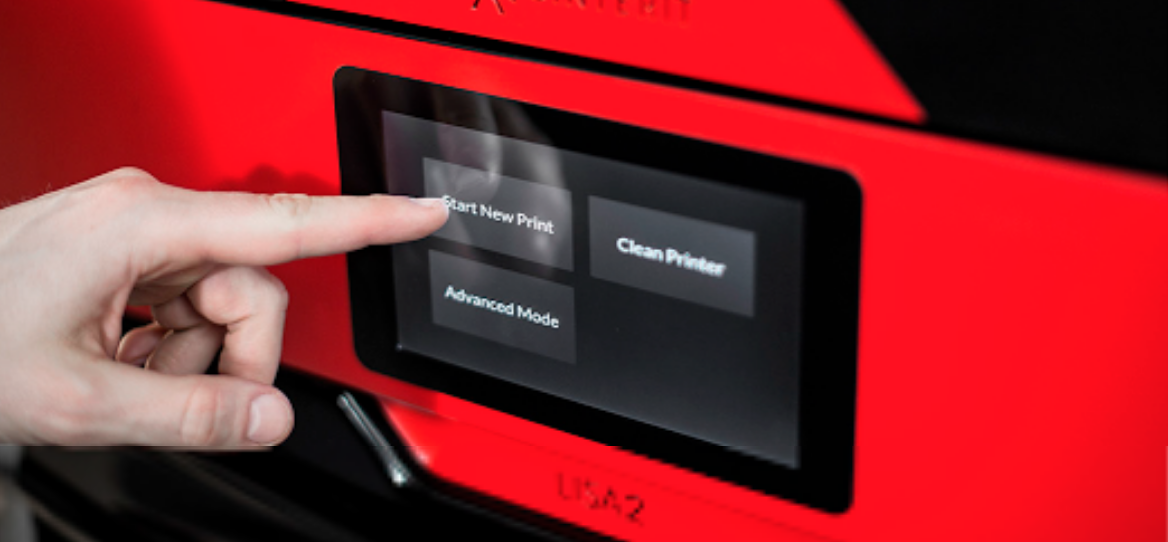

LCD capacitive colour screen, Built-in camera
Build Plate
150 x 200 x 260 mm (5.9 x 7.9 10.2 in.)
Diameter Tolerance
from 0.5mm (0.019 in.)
XY Positioning Accuracy
from 0.05 mm (0.02 in.)
Printer volume WxDxH (mm) // WxDxH (inch)
[Max Diagonally]: 316mm (12.4 in)
File Format
STL, OBJ, 3DS, FBX, DAE, 3MF
Connectivity
Wifi, USB port
Printer Software
Sinterit Studio 2019
