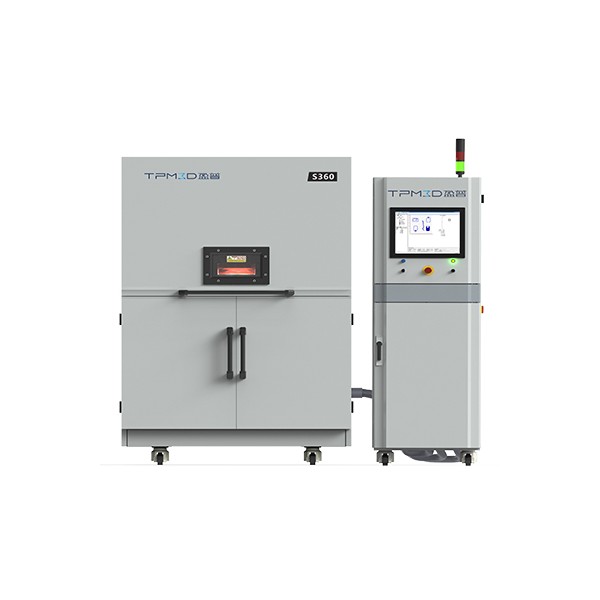

TPM3D S Series S360

The S360 SLS printer from TPM3D's S Series features a build unit size of 360 x 360 x 600mm. The TPM3D S range of industrial SLS 3D printers have been developed with Stratasys technical experts and optimised for use with industrial applications.
Request a quote

Compare now


Free shipping on orders over $500 to mainland US



Free lifetime remote support on all products

logo

TPM3D S Series S360

TPM3D have over 20 years experience in the field of producing industrial Additive Manufacturing machines. The TPM3D S range of industrial SLS 3D printers have been developed with Stratasys technical experts and optimised for use with industrial applications. The S360 SLS printer from TPM3D's S Series features a build unit size of 360 x 360 x 600mm. Compared to their other range of 3D printers, the S range has been optimised to be faster at printing and faster at build unit cooling meaning higher production. The ever expanding range of technical materials allows 3D printing to disrupt traditional manufacturing, giving you greater geometric freedom and optimised material properties.

KEY FEATURES

An LCD display makes the S360 easy to operate

Get high, comprehensive performance from a high quality SLS printer at an affordable entry point

TPM3D have optimised the build volume, every inch of the S360 has been designed and optimised to produce the best SLS prints possible out of technical materials

Removable Build Unit and manual trolley for ease of post processing. The removable build unit fits into the Break Out Station which evenly cools the entire build down to 60°C making it safe and easy to handle whilst eliminating any part warping. You can purchase a separate build unit to reduce machine down time, simply have one build unit in the S360 building parts and one cooling the previous build in the break out station.

Smart powder loading system. The powder loading bins easily slide out giving you greater access to fill up with your SLS material. When printing the build, these powder loading bins efficiently distribute the correct amount of powder layer by layer whilst also removing any debris or large clumps that could ruin the build

Active cooling of the finished build in the 3D printer is achieved by the use of room temperature air to uniformly cool the build unit to 80°C, ensuring a safe and stable printing area.

In-Built software which is smart and easy to operate. Extra parts can be added or deleted in the build area at any point during the printing process.

Achieve even better post processing with the addition of the post processing station. This smart system features smart dust extraction for the excess powder and integrated powder mixing. Sieved powder is automatically moved to the mixer chamber and mixed at a set ratio with virgin powder ensuring greater part quality. This mixed powder is conveyed to the build unit ready for the next print, completely eliminating the need to manually move heavy powders around.

machine

Integrated Nitrogen Generator

The TPM S Series of SLS 3D printers come with a nitrogen generator integrated into the machine. Nitrogen is used to effectively purge the build chamber of any oxygen before printing starts. The built in generator will emit a small amount of nitrogen throughout the build to keep the oxygen levels low and keep part accuracy and quality high. By having the nitrogen generator integrated it significantly reduces cost to the end user and also eases the process as there is no need to purchase and fit a separate generator.

part

Part printed with TPM SLS machine

EXAMPLE APPLICATIONS

The entire TPM3D range are ideal for a variety of applications. Thanks to the ability to print at high temperatures, the TPM3D industrial SLS machines are idea for using with high performance engineering materials to produce both prototypes and end use parts. The TPM3D SLS machines have an open materials platform allowing you a greater material choice. They have optimised their own range of TPM3D SLS powders for their S range.


Aviation

car

Automotive

medical

Medical

education

Education

Included with the Machine

S360 SLS

Laser temperature regulator

Powder/Part Processing Station

Manual Trolley

Start up kit including useful tools and accessories

For further information and advice on how TPM3D 3D printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

TPM3D

Data sheet

Printing Technology
SLS
Layer Thickness / Print Precision
0.06 ~ 0.2 Adjustable，Recommended Values 0.12
Printing Speed
10-25 mm/h
Weight
1300kg
Operating Temperature
210 / 155 ℃
Max Build size (WxDxH)
350 x 350 x 590
Dimensions
1.34 x1.26 x1.97m
File Input Format
STL
Scan Speed
15,000mm/s
Operating Voltage
380V、3P/N/PE、32A、50Hz、8KW
Supported Software
Windows 10.0 /Solid View Pro RP,64bit or Voxeldance Additive Premium
Laser spot size
0.25mm
