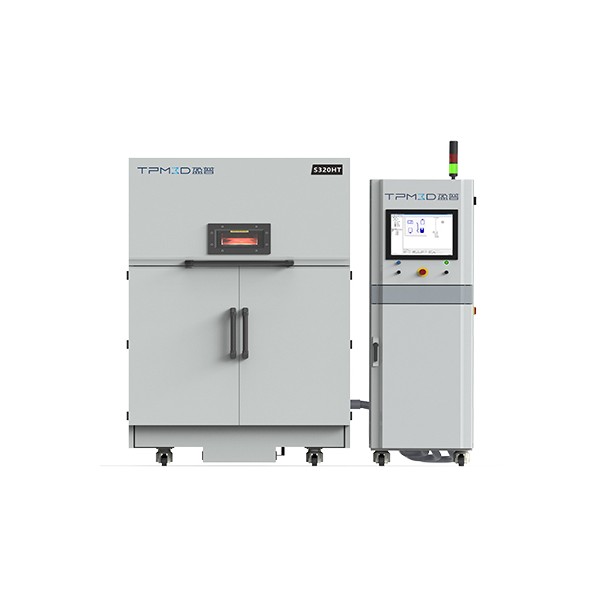

TPM3D S Series S320HT

The S320HT SLS printer is the most advance offering from TPM3D's S Series. Thanks to the ability to print at high temperatures of up to 350°C, the S320HT is more than capable of producing parts out of true engineering materials such as PEEK. This industrial SLS machine is perfect for a range of applications including; rapid prototyping, educational and medical.

Request a quote
Compare now

logo

TPM3D S Series S320HT

TPM3D have over 20 years experience in the field of producing industrial Additive Manufacturing machines. The TPM3D S range of industrial SLS 3D printers have been developed with Stratasys technical experts and optimised for use with industrial applications. Thanks to the ability to print at high temperatures of up to 350°C, the S320HT is more than capable of producing parts out of true engineering materials such as PEEK. The ever expanding range of technical materials allows 3D printing to disrupt traditional manufacturing, giving you greater geometric freedom and optimised material properties. The TPM3D S320HT will be a valued work horse to your manufacturing capacity that will stand the test of time.

KEY FEATURES

Removable Build Unit and manual trolley for ease of post processing. The removable build unit fits into the Break Out Station which evenly cools the entire build down to 60°C making it safe and easy to handle whilst eliminating any part warping. You can purchase a separate build unit to reduce machine down time, have one build unit in the S320HT building parts and one cooling the previous build in the break out station.

The Break Out Station is designed for depowdering printed parts easily. You can also use the integrated sieves to filter any un-sintered powder for reusing in the next builds.

Small machine footprint giving you a compact SLS machine with maximum printing area and occupying minimal amount of space in your workshop.

Smart powder loading system. The powder loading bins easily slide out giving you greater access to fill up with your SLS material. When printing the build, these powder loading bins efficiently distribute the correct amount of powder layer by layer whilst also removing any debris or large clumps that could ruin the build.

Active cooling of the finished build in the 3D printer is achieved by the use of room temperature air to uniformly cool the build unit to 80°C, ensuring a safe and stable printing area.

An easy to read LCD display makes the S320HT easy to operate.

Get high, comprehensive performance from a high quality SLS 3D printer at an affordable price point.

machine


Integrated Nitrogen Generator

The TPM S Series of SLS 3D printers come with a nitrogen generator integrated into the machine. Nitrogen is used to effectively purge the build chamber of any oxygen before printing starts. The built in generator will emit a small amount of nitrogen throughout the build to keep the oxygen levels low and keep part accuracy and quality high. By having the nitrogen generator integrated it significantly reduces cost to the end user and also eases the process as there is no need to purchase and fit a separate generator.


part


EXAMPLE APPLICATIONS


Aviation

car

Automotive

medical

Medical

education

Education


Included with the Machine

S320HT SLS

Open break out station

Laser temperature regulator

Manual Trolley

Start up kit including useful tools and accessories

S320HT machine


For further information and advice on how TPM3D 3D printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

TPM3D

Data sheet

Layer Thickness / Print Precision
0.06 ~ 0.2 Adjustable. Recommended Values 0.12
Printing Speed
10-25 mm/h
Operating Temperature
350 / 300 ℃
Weight
1350kg
Max Build size (WxDxH)
310 x 310 x 380
Dimensions
1.30 x1.26 x2.06m
File Input Format
STL
Scan Speed
13,000mm/s
Operating Voltage
380V、3P/N/PE、32A、50Hz、8KW
Supported Software
Windows 10.0 /Solid View Pro RP,64bit or Voxeldance Additive Premium
Laser spot size
0.22mm
