TPM3D S Series S600DL

The S600DL SLS printer from TPM3D's S Series is the largest offering in their S Series range. At an impressive 600 x 600 x 800mm build volume. Produce parts easily in a variety of high performing engineering materials. Featuring two lasers, you can produce parts much faster and with no limitation of geometric design.
Request a quote
Compare now

logo

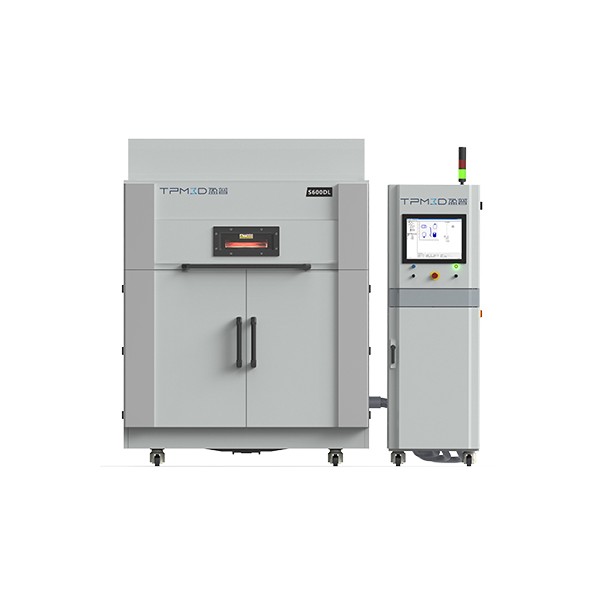

TPM3D S Series S600DL

With over 20 years experience in the field of producing industrial Additive Manufacturing machines TPM3D are experienced manufacturers of industrial SLS 3D printers. The TPM3D S range of SLS 3D printers have been developed with Stratasys technical experts and optimised for use with industrial applications. The S600DL SLS printer features an impressive build volume of 600 x 600 x 800mm, this allows you to create large parts quickly and easily. The S600DL features dual lasers that allow for even faster production of these parts. With an expanding range of technical materials, 3D printing is disrupting traditional manufacturing, giving you greater geometric freedom and optimised material properties.


Aerospace part


KEY FEATURES

An LCD display makes the S600DL easy to operate

A large forming space allows you to create larger parts easily, efficiently and in one piece.

2 lasers capable of reaching any area of the build chamber. This gives you the entire build platform for production and greater geometric and design freedom. The dual lasers can sinter the parts simultaneously, this speeds up the production process and allow for greater part turn around time.

The S600DL is ideal for manufacturing large quantities of plastic parts or small-volume parts in batch production.

Removable Build Unit and manual trolley for ease of post processing. The removable build unit fits into the TPM Break Out Station which evenly cools the entire build down to 60°C making it safe and easy to handle whilst eliminating any part warping. You can purchase a separate build unit to reduce machine down time, have one build unit in the S600DL building parts and one cooling the previous build in the break out station.

Smart powder loading system. The powder loading bins easily slide out giving you greater access to fill up with your SLS material. When printing the build, these powder loading bins efficiently distribute the correct amount of powder layer by layer whilst also removing any debris or large clumps that could ruin the build.

Active cooling of the finished build in the 3D printer is achieved by the use of room temperature air to uniformly cool the build unit to 80°C, ensuring a safe and stable printing area.

Smart, easy to operate in built software that can add or delete parts during any stage of the process.

Achieve even better post processing with the addition of the post processing station. This smart system features smart dust extraction for the excess powder and integrated powder mixing. Sieved powder is automatically moved to the mixer chamber and mixed at a set ratio with virgin powder ensuring greater part quality. This mixed powder is conveyed to the build unit ready for the next print. Completely eliminating the need to manually move heavy powders around.

machine


Integrated Nitrogen Generator

The TPM S Series of SLS 3D printers come with a nitrogen generator integrated into the machine. Nitrogen is used to effectively purge the build chamber of any oxygen before printing starts. The built in generator will emit a small amount of nitrogen throughout the build to keep the oxygen levels low and keep part accuracy and quality high. By having the nitrogen generator integrated it significantly reduces cost to the end user and also eases the process as there is no need to purchase and fit a separate generator.


EXAMPLE APPLICATIONS

The entire TPM3D range are ideal for a variety of applications. Thanks to the ability to print at high temperatures, the TPM3D industrial SLS machines are idea for using with high performance engineering materials to produce both prototypes and end use parts. The TPM3D SLS machines have an open materials platform allowing you a greater material choice. They have optimised their own range of TPM3D SLS powders for their S range.


Aviation

car

Automotive

medical

Medical

education

Education


Frame parts printed in flam retardant


Included with the Machine

S600DL SLS featuring 2 lasers

Laser temperature regulator

Powder/Part Processing Station

Manual Trolley

Start up kit including useful tools and accessories


For further information and advice on how TPM3D can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

TPM3D

Data sheet

Build Volume W x D x H (mm) // W x D x H (inch)
590 x 590 x 790
Layer Thickness / Print Precision
0.06 ~ 0.2 Adjustable. Recommended Values 0.12
Printing Speed
10-25 mm/h
Operating Temperature
210 / 155 ℃ max
Weight
1750kg
Dimensions
1.8 x1.5 x2.4m
File Input Format
STL
Scan Speed
25,000mm/s
Software Compatibility
Windows 10.0 /Solid View Pro RP,64bit or Voxeldance Additive Premium
Laser spot size
0.39mm
