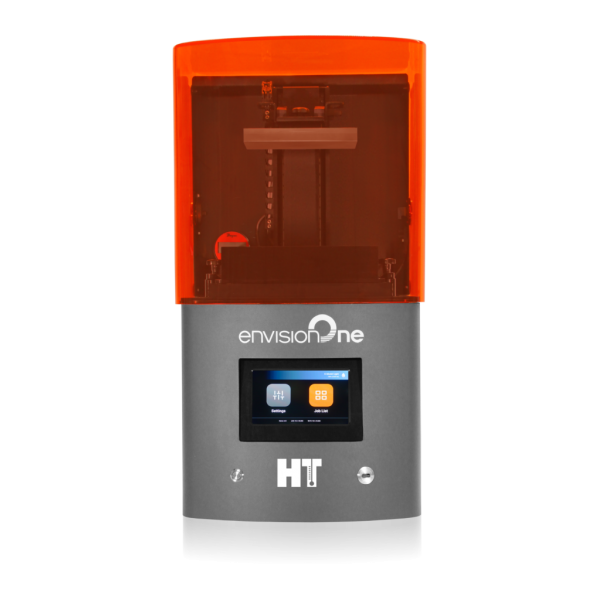

EnvisionTEC Envision One cDLM HT

The Envision One cDLM HT (High Temperature) by EnvisionTEC is an upgraded version of the innovative and popular Envision One range. Featuring a high accuracy infrared heating system for the resin in the material tray and a heated platform, this addition to the range is capable of printing the new generation of advanced additive manufacturing resins.

Request a quote

Compare now


Free Shipping on orders over £75



Free lifetime remote support on all products

envisionone

The Envision One cDLM HT (High Temperature) is not only the largest desktop 3D printer in the cDLM range but is also considered to be the most advanced. It is the only 3D printer to be able to produce a commercial Continuous Digital Light Manufacturing (cDLM) system which can process and 3D print a new generation of 3D printing resins for guaranteed end-use quality parts. In addition, EnvisionTEC's sophisticated build data monitoring and optimisation software ensures reliable, high quality results.

envision in use

System Properties

  • Zero separation forces
  • Layerless technology delivers super smooth models
  • Domeless technology delivers the highest accuracy in Z
  • Closed loop temperature controller
  • 75% less supports compared to regular DLP Printers
  • High-resolution industrial projector with UV glass
  • LED light source at 385nm wavelength for higher accuracy on clear parts and crisper details across all parts

Machine Properties

Build envelope

     180 x 101 x 175 mm

   XL version also available

*Contact us for details*

     180 x 101 x 330 mm

 Build speed

     Up to 120 mm/hour, material dependent

Native XY resolution

     93 µm

Build platform

temperature

     Adjustable from room temperature to 100°C

Material Tray Resin

Temperature

      Adjustable from room temperature to 75°C

Data handling

     STL

Warranty

      1 year back to factory included


For further information and advice on how EnvisionTEC 3D printers and resins can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

EnvisionTEC

Data sheet

Printing Technology
DLP
Compatible materials
E-RE90, Loctite E-3955 FST HH, E-RE70, E-3172, E-IND147, E-RE30, E-Guide Soft, E-ToughFlex
Operating Voltage
110/220 VAC, 50/60 HZ 5A
Product Dimensions
15.4 x 16.93 x 25.02 in. (39.1 x 43 x 63.6 cm)
Product Weight
70 lbs (32 kg)
