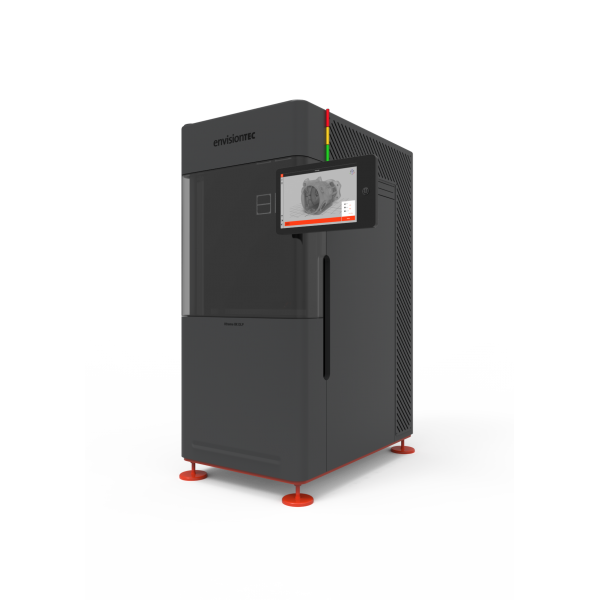

EnvisionTEC - Xtreme 8K DLP Ortho

The Xtreme 8K DLP Ortho is the largest production printer globally. With this 3D printer, high quality and precise orthodontic models can be printed with high precision and quality at rapid speed.

Request a quote

Compare now


Free Shipping on orders over £75



Free lifetime remote support on all products

ortho

8k

The Xtreme 8K DLP Ortho is the largest production printer globally. With this 3D printer, high quality and precise orthodontic models can be printed with high precision and quality at a rapid speed. In order to produce these prints, EnvisionTEC has installed a dual 4K projector DLP technology which allows a high precision on complex 3D prints. Its features such as its proprietary model materials also allows the production of high quality orthodontic models. When delivered, the printer is installed with its own user-friendly software, EnvisionTEC’s Envision One RP, which allows a perfect model production as well as automatic generation of supports. Because of its unparalleled surface finish and precise productivity, Xtreme 8K DLP Ortho is one of the leading printers today.

img 1
img 2
img 3
img 4

Technical Specifications

  Build envelope

      450 x 371 x 101.6 mm

   Voxel size XY

     100 µm

   Print speed at 100 um layer thickness

    1.5 inches/hour

  Print speed at 150 um layer thickness

     1.15 inches/hour

  Warranty

   1 year


For further information and advice on how EnvisionTEC can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

EnvisionTEC

Data sheet

Weight
499 kg (1100 lbs)
Dimensions
1420 x 1052 x 2350 mm (55.9 x 41.42 x 92.52 in)
Compatible materials
E-Model Light DLP (Prototype and end-use model printing) , E-Model Beige (Prototype and end-use model printing), E-AquaModel
Operating Voltage
220 Volt, Single Phase, 15 Amps ;110 Volt, Single Phase, 15 Amps

Download

Xtreme 8K DLP Ortho_Manual

Download (810.56k)
