E-Guide

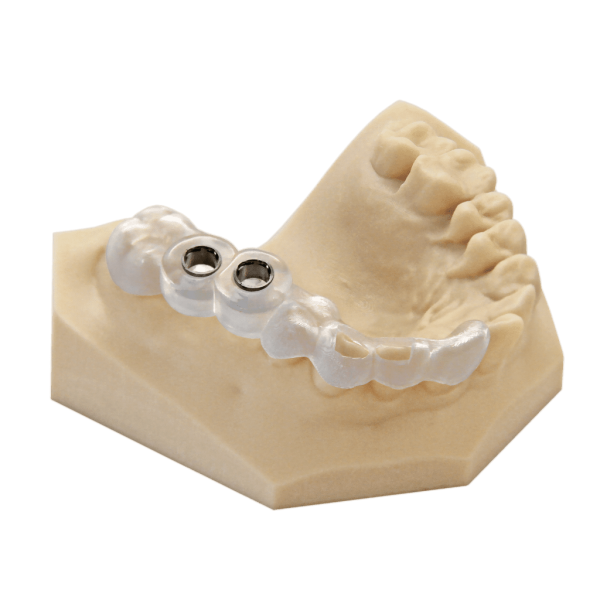

The EnvisionTEC E-Guide Resin is a biocompatible Class I material, developed for the production of high precision surgical drill guides, used for implant surgery. The E-Guide is superior to traditional methods of manufacturing of implants during surgery. Drill sleeves can be inserted directly after printing.
The EnvisionTEC E-Guide Resin is registered with the FDA as a Class I medical device. The cost of high quality drill guides can be dramatically lower when produced using the E-Guide resin.
Applications: Dental
Material Properties
| Standard or Method | Description | Value |
|---|---|---|
| DIN EN ISO 20795-2:2013 | Flexural Strength | 79 - 85 MPa |
| DIN EN ISO 20795-2:2013 | Flexural Modulus | 2059 - 2030 MPa |
| DIN EN ISO 20795-2:2013 | Water Sorption | 30 - 23 μm/mm3 |
| DIN EN ISO 20795-2:2013 | Water Solubility | 0.5 μm/mm3 |
| Brookfield | Viscosity | 230 - 330 cP at 30° C |
| ISO 10993-5 | Cytotoxicity | Passed |
| ISO 10993-10 | Irritation and Skin Sensitisation | Passed |
