EnvisionTEC | HTM 140 V2

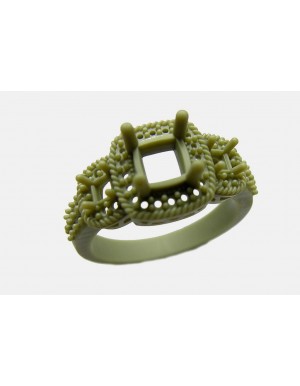

The EnvisionTEC HTM 140 V2 is a High Temperature Mold Material mostly used to build molds for the jewellery industry.

Tax included
Available to order.

Compare now

Free Shipping on orders over £75


Free lifetime remote support on all products

The EnvisionTEC HTM 140 V2

The EnvisionTEC HTM 140 V2 resin has changed the printing capabilities for manufacturers. High definition parts printed in HTM 140 resin can be directly vulcanised in rubber, eliminating the need for a metal master, this is due to the heat deflection temperature of 140 dregrees Celcius straight out of the machine. The material is designed to withstand both the heat and pressure during the vulcanising process of the model with incredible detail and no loss of dimensional stability. The HTM 140 V2 can additionally be used in a variety of applications that require thermal resistance, like items to be metallised or tested for high temperature gas and liquid applications. The resin can also be used for small run injection molding. It is easily paintable for visual clearity.

Material Properties
Tensile Strength 56 MPa
Elongation at Break 3.5%
Flexural Strength 115 MPa
Flexural Modulus 3350 MPa
Heat Deflection Temperature 140° C

Applications: Entertainment, Automotive, Jewellery, Consumer Goods, Education, Manufactoring


Data sheet

Tensile Strength
56 MPa
