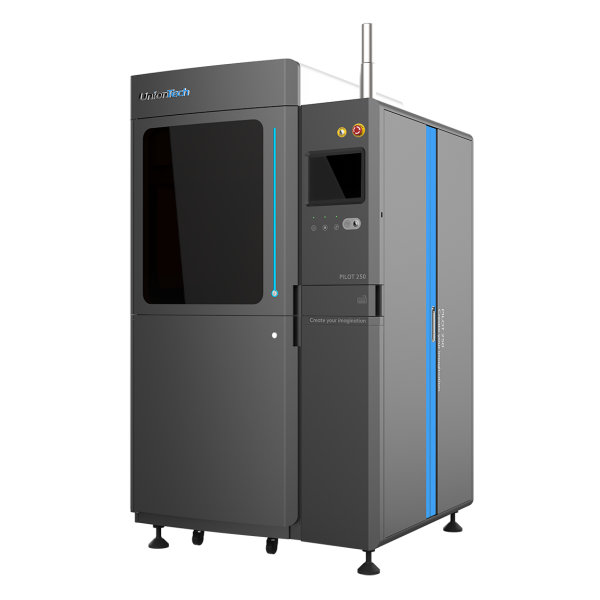

UnionTech Pilot 250
The Pilot 250 SLA 3D printer by UnionTech is a high quality industrial grade 3D printer for small and detailed prints, ideal for pinpoint accurate prototyping. With a choice in beam size, ranging from small (.06 mm to .08mm) and standard (0.12 to 0.2mm), achieve fine-detailed prints with an extra smooth surface finish.
Free Shipping on orders over £75
Free lifetime remote support on all products
The Pilot Commercial Series by UnionTech is the ultimate SLA 3D printer for high quality, small to medium projects that prints with an exceptionally smooth surface finish. The Pilot Series is available in two sizes, the Pilot250 and the Pilot450, customisable to your 3D printing needs. Equipped with a CE certification, the Pilot Series by UnionTech ensures a healthy printing environment, with automatic odour removal for safe printing in offices.
Made with components from globally leading suppliersThe UnionTech Pilot250 features components from globally recognised suppliers including SCANLAB, SPECTRA-PHYSICS, and Advanced Optowave, guaranteeing high quality functionality and professional performance.
Stable printing optimised with a granite recoater
Achieve a layer thickness between 0.05mm minimum and 0.25mm maximum with the bespoke granite recoater substrate for stable printing and excellent surface quality.
Customisable Beam Size
Different beam sizes are available to optimise 3D printing time. A larger beam size allows for rapid printing, and the smaller beam creates ultra-fine exterior details
Achieve ultra-fast scanning speeds of up to 12-15 m/s
Automatically control surface level and processing parameters
Generous Build Volume
The build envelope of 250 x 250 x 250 mm is ideal for prototyping, small to medium part production and small batch printing.
- Build Volume W x D x H (mm) // W x D x H (inch)
- 250 x 250 x 250 mm
- Layer Thickness / Print Precision
- 0.05 mm minimum; 0.25 mm maximum
- 775 kg (with 48 kg initial fill inside)
- 355 nm
- Slicing Software
- Polydevs or Materialise Magics
- Operating System
- Windows 7, Windows 10
- File Input Format
- User Interface
- Ethernet, IEEE 802.3 using TCP/IP and NFS
- Solid-state frequency tripled Nd: YVO4
- Laser spot size
- Standard Beam (0.12 – 0.20 mm) or Small Beam ( 0.06 – 0.08 mm ) ,optional
