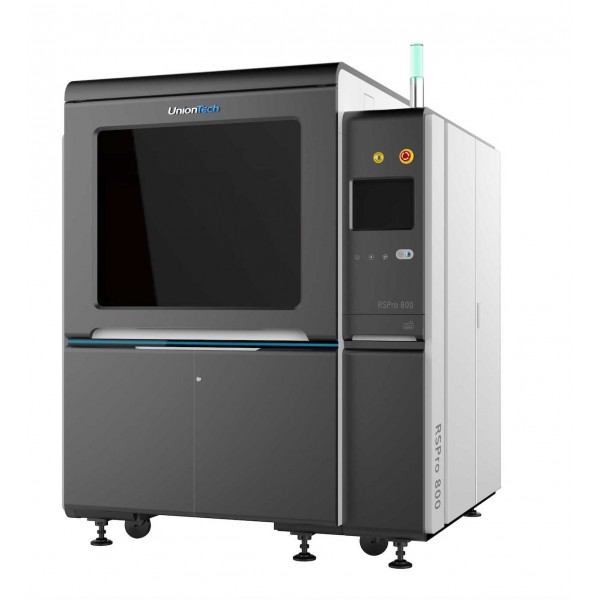

UnionTech RSPro 800

The RSPro800 by UnionTech is an even larger format industrial SLA 3D printer within their trusted RSPro Series, featuring an extra large build volume of 800 x 800 x 550 mm, with capabilities of printing objects weighing as much as 150kg in one print.

Request a quote

Compare now


Free Shipping on orders over £75



Free lifetime remote support on all products

rspro series

The RSPro Series of SLA 3D printers created by UnionTech are printers unlike any other. Providing 3D printing solutions for industrial-grade manufacturing with incredibly generous build volumes, the RSPro series is designed for the most demanding applications. The RSPro800 features an extremely generous build volume of 800 x 800 x 550 mm, designed to tackle the largest 3D projects and manufacturing needs. As available across the RSPro Series, the RSPro800 features machine components designed by industry-trusted brands, ensuring a seamless and efficient 3D printing experience optimised for industrial use.


Open design for materials and machine access

Experience the freedom to collaborate with the RSPro800's open design material compatibility and machine access.

rspro800


Diverse Applications

The RSPro Series is designed to adapt to a diverse range of manufacturing challenges including medical, aerospace, automotive, electronics, prototyping, architecture and many more.

electronic
auto
auto

Tackles the largest 3D printing projects

The RSPro800 features a very large build volume of 800 x 800 x 550mm, ideal for batch production and extra-large projects. The RSPro800 is capable of printing objects weighing as much as 150kg, perfect for larger scale manufacturing applications, and large-scale products that requires industrial-grade precision.

Reduced post-processing

With exceptional attention to detail, the RSPro800 ensures 3D prints achieve an industrial-grade ultra-smooth surface finish, minimising post-processing requirements. An Adjustable laser size of 0.12 and 0.20mm allows for optimisation of printing time while maintaining detail-rich print exteriors.

Designed with components from industry-trusted brands

The RSPro800 features components from Panasonic, Optowave, and Scanlab for an optimal 3D printing user experience.

Stable printing optimised with a granite recoater

Achieve a layer thickness between 0.07mm and 0.25mm maximum with the bespoke granite recoating substrate for excellent surface quality.



For further information and advice on how UnionTech 3D printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Build Volume W x D x H (mm) // W x D x H (inch)
(800 × 800 × 550 mm
Layer Thickness / Print Precision
0.003 in (0.07 mm) minimum; 0.01 in (0.25 mm) maximum
Weight
2000 kg
Wavelength
355 nm
Dimensions
1798 × 1602 × 2196 mm
File Input Format
STL
Laser spot size
Nominal 0.005 - 0.008 in (0.12 - 0.20 mm)
