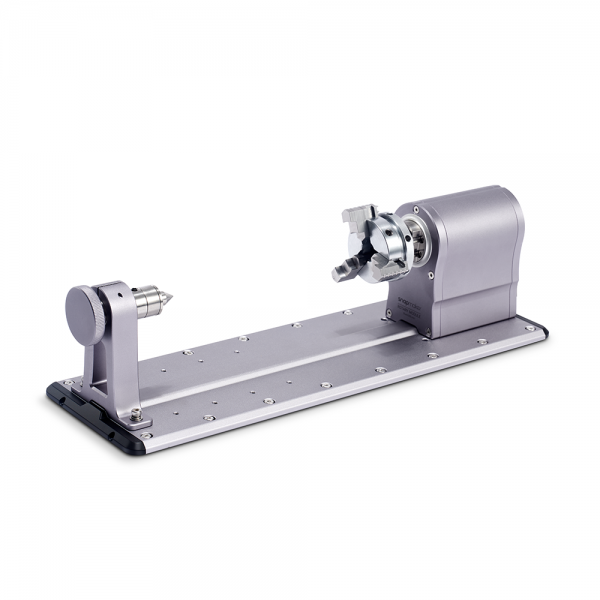

Snapmaker 2.0 Rotary Module

Add a fourth axis to your Snapmaker 2.0 with the Snapmaker 2.0 Rotary Module. Turning it into a robust desktop CNC machining powerhouse. Available in two sizes designed to fit the A250 or the A350.

£449.17
Tax included
Choose Your Size
Quantity
Available to order. Dispatch within 3-4 weeks.

Compare now


Free Shipping on orders over £75



Free lifetime remote support on all products

logo

Snapmaker 2.0 Rotary Module

Available in two sizes designed to perfectly fit the A250 or the A350. The Snapmaker 2.0 Rotary Module adds a 4th axis which allows you to rotary CNC carve and laser in a variety of materials including; wood, tooling boards, plastics, fabrics. Get precise control of the 360° continuous rotation featuring a maximum angular speed of 45° per second and the 0.2, 1, and 5-degree rotation on the touchscreen.

rotary

KEY FEATURES

A 3 jaw chuck rotates with a minimum angle of 0.1° meaning you can create designs on uneven and irregular surfaces. The rotary module uses strain wave gearing and packs a 100:1 speed reducer which converts the power to a lower output speed. With the tailstock, the 3 jaw chuck can support objects up to 170 length × 68 radius (mm) or 225 length × 68 radius (mm) without the tailstock. You could also use a compatible chuck from the market.

chuck

Use Snapmaker Luban, the free CAD/CAM software to create design for the 4 axis rotary module. The software has been designed to easily hollow objects from STL files and features 4 axis linkage support; allowing X, Y, X and B axes to move simultaneously; for full control.

CAD/CAM

Origin Assist is the new touchscreen feature designed to help you with your rotary carving. Origin Assist will help you; pre-set CNC bits, set origins and Z-offsets as well as easing the process of installing materials. Choose between Assist Mode or Manual Mode to determine the level of control.

Origin

CNC

engrave

For further information and advice on how Snapmaker can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Weight
A250: 2.2kg | A350: 2.4kg
Material
Range: A250: 10 - 70 mm, with tailstock 10 - 125mm, without tailstock | A350: 10 - 170 mm, with tailstock 10 - 225mm, without tailstock
Material
MAX SIZE: A250: 70 length × 68 radius (mm), with tailstock 125 length × 68 radius (mm), without tailstock | A350: 170 length × 68 radius (mm), with tailstock 225 length × 68 radius (mm), without tailstock
Dimensions
A250: 120 width × 284 depth × 108 height (mm) | A350: 120 width × 384 depth × 108 height (mm)
File Input Format
.stl, .bmp, .svg, .dxf, .jpg, .jpeg, .png
Compatible materials
CNC: Wood, tooling and modeling board, plastic, bamboo, wax, more being tested | LASER: Wood, leather, plastic, fabric, paper, non-transparent acrylic, more being tested
Supported Software
Snapmaker Luban, Autodesk Fusion 360, Vectric Aspire
