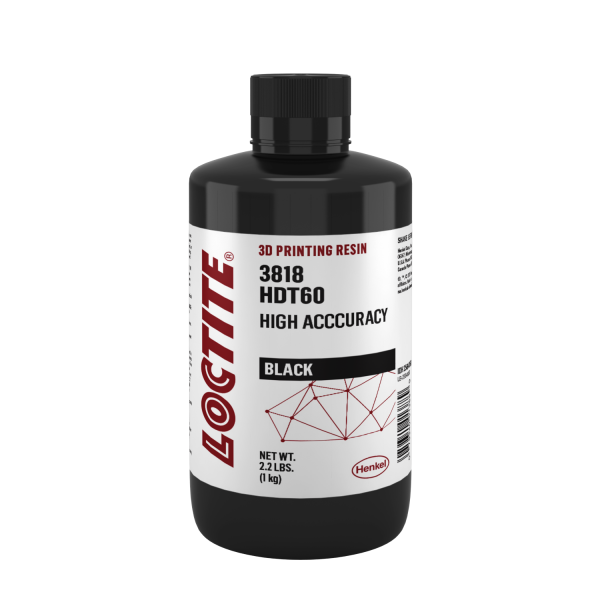

LOCTITE 3D | 3818 High Accuracy

LOCTITE® 3D 3818 provides fast print speeds with very high accuracy allowing parts to be printed with fine-resolution features (50 µm)

£154.17

(£154.17 Per Litre)

Tax included
Quantity

Compare now


Free Shipping on orders over £75



Free lifetime remote support on all products

Henkel Loctite Logo

The LOCTITE 3D 3818 Resin

LOCTITE 3D 3818 is a fast printing, rigid photopolymer, and can be printed with very high resolution features (50 µm). Formulated with exceptional surface finish, low warpage and extremely high print accuracy, this product is perfect for printing accurate prototypes. This product can be easily painted, sanded or machined for further finishing. This product should only be printed on a DLP machine.

Key Features

  • Rigid, general-purpose resin with high accuracy
  • Exceptional surface finish
  • Low shrinkage
  • High green HDT – less warpage during post curing
  • Fast print speeds
  • Printable at room temperature across various laser SLA and DLP platforms
  • 1 Liter Bottle
Mechanical PropertiesMethodGreenPost-Processed Workflow APost-Processed Workflow B
Tensile Stress at Break ASTM D638 31.8 ± 2 MPa 56.9 ± 3 MPa 60.2 ± 1.8 MPa
Young's Modulus ASTM D638 1345 ± 99 MPa 2165 ± 69 MPa 2298 ± 43 MPa
Elongation at Failure ASTM D638 19 ± 3.8 % 8.7 ± 1 % 5.1 ± 1.2 %
Ultimate Flexural Strength ASTM D790-B 40.7 MPa 93.6 ± 2 MPa 101 ± 5 MPa
Flexural Modulus ASTM D790-B 835 MPa 2264 ± 65 MPa 2384± 77 MPa
Flexural Strain at Break ASTM D790-B > 10 % > 10 % 6.5 ± 1 %
Other PropertiesMethodGreenPost Processed Workflow APost Processed Workflow B
Heat Deflection Temperature at 0.455 MPa DMA 35° C 47.6° C 62.1° C
XY Warpage LOCTITE Standard 0.0 % 0.5 %
Solid Density (Green) ASTM D1475
Solid Density ASTM D1475
Viscosity ASTM D7867 540 ± 80 cP
Liquid Density ASTM D1475
