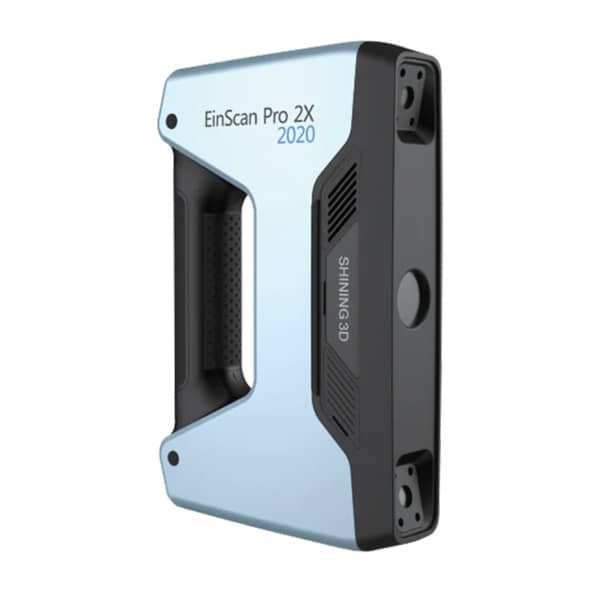

EinScan Pro 2X 2020
The newest addition to the EinScan lineup, the EinScan Pro 2X 2020 handheld scanner is portable, lightweight, and versatile for ultra-high precision results. Ideal for scanning small to medium sized objects with expert precision. iMakr offers 12 months of warranty, with business and technical support included with the purchase of EinScan 3D scanning solutions.
Free Shipping on orders over £75
Free lifetime remote support on all products
Adding to the popular EinScan range by Shining 3D is the new EinScan Pro 2X 2020. Awarded best handheld scanner and portable 3D scanner in 2019 by Aniwaa. The EinScan Pro2X 2020 offers incredible price to performance value, providing professionals with high quality 3D scans in rapid time. The EinScan Pro 2X 2020 is ideal for small to medium sized objects.
Scanning speed (handheld rapid scan) of 30 fps 1.5 million points/second.
Minimum point difference (Handheld HD / Rapid Scan) 0.2mm.
Volumetric Accuracy (HandheldScan Mode) 0.1mm + 0.3mm
Scan accuracy (fixed scan) of .04mm
Volumetric accuracy of 0.1mm + 0.3mm/m
Minimum point distance (handheld HD/ rapid scan) 0.2mm
Versatile Scan Modes & Applications
Scan Modes: Handheld Rapid Scan, Handheld HD Scan, Fixed Scan.
Align Modes: Feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.
EXSCAN PRO Software
Featuring new UI, workflow and operation mode. Ability to set the resolution option afterwards, this improves scanning efficiency. Output standard files: STL, OBJ, PLY, 3MF, ASC and P3
Lightweight & compact size weighing just 1.13kg
Full colour & texture scan
New scanning software EXSCAN PRO. Compatible with STL, OBJ, PLY, 3MF, ASC & P3
- File Output Format
- OBJ; STL; ASC; PLY; P3 ; 3MF
- Scan Accuracy
- Handheld HD Scan: up to 0.045 mm | Handheld Rapid Scan: up to 0.1 mm | Fixed Scan with Turntable: 0.04 mm(single shot accuracy) | Fixed Scan without Turntable: 0.04 mm(single shot accuracy)
- Light Source
- Range of Single Capture
- 150*120 mm — 250*200 m
- Scan Speed
- Handheld HD Scan: 10 fps 300,000 points/s | Handheld Rapid Scan: 30 fps 500,000 points/s | Fixed Scan with Turntable: Single Scan＜1s | Fixed Scan without Turntable: Single Scan＜1s
- Supported OS
- Windows7; Windows8; Windows10; (64bit)
- Recommended System Requirements
- Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
