Shining3D Einstar handheld 3D scanner
    • Shining3D Einstar handheld 3D scanner

    EinScan Einstar 3D Scanner

    Introducing Einstar from Shining3D, an affordable handheld 3D scanner, making high-quality 3D data available to everyone. iMakr includes a full 12 month warranty with the Einstar 3D scanner, with full business support available from our team of 3D scanning experts.

    Tax included
    On backorder - 1 month lead time


    Free Shipping on orders over £75


    Free lifetime remote support on all products

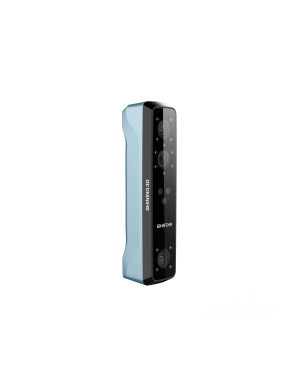

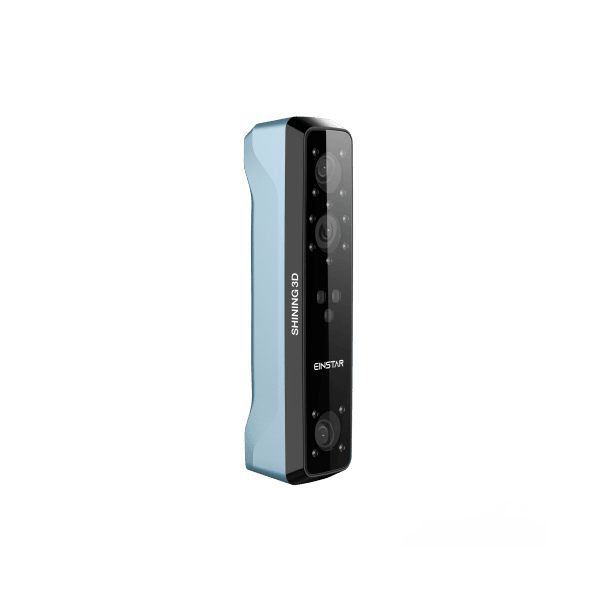

    The Einstar from Shining 3D is equipped with 3 infrared VCSEL projectors, 2 stereo depth cameras, and 1 RGB colour camera, can easily capture stable and clear details at fast pace providing high-quality data output with colour texture. It is the perfect tool for getting started with 3D scanning or experiencing 3D modelling easily and efficiently.

    In the standard package you will find a handheld 3D scanner with Exstar software, and a lightweight carrying case which includes a series of accessories: a silicone case, introductory user guide, positioning markers, cloth to wipe the lens, a carrying strap, power supply and USB cable.


    High quality data

    Collect high density point cloud data fast and easily with point distance up to 0.1mm.

    high data quality

    High colour fidelity

    Benefit from built-in RGB colour camera. 3D data with authentic colours.

    colour scanning

    Stable outdoor scanning

    Equipped with 3 Infrared VCSEL Projectors, 2 Stereo Depth Cameras and 1 RGB Camera, Einstar can capture clear scan data and generate stable outputs outdoors.

    outdoor scanning

    Streamlined user experience

    Smooth and fast, scanning speed up to 14 FPS. The Einstar includes features such as smart tracking performance, automatic alignment, and an Intelligent algorithm.

    Easy to use

    For further information and advice on how the Einstar can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Request a callback

    Data sheet

    0.5 kg
    Light Source
    Infrared VCSEL structured light
    with carrying case (245 mm x 245 mm x 90 mm), scanner alone (220 mm x 46 mm x 55 mm)
    File Output Format
    OBJ, STL, PLY, ASC, 3MF, P3
    Working Distance
    160 mm ~ 1400 mm
    Mode of Alignment
    Texture/ Feature/ Hybrid Alignment/ Global Markers
    Scan Speed
    Up to 14FPS
    Point Distance
    0.1 mm ~ 3 mm
    Recommended System Requirements
    CPU: Intel Core i7-11800H or above RAM: 32GB or above Graphics card: NVIDIA GTX 1060 or above VRAM: 6GB or above
