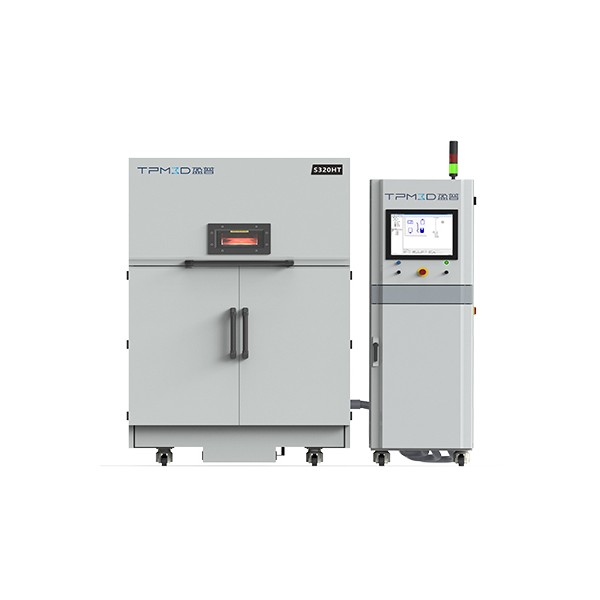

TPM3D S Series S320HT
The S320HT SLS printer is the most advance offering from TPM3D's S Series. Thanks to the ability to print at high temperatures of up to 350°C, the S320HT is more than capable of producing parts out of true engineering materials such as PEEK. This industrial SLS machine is perfect for a range of applications including; rapid prototyping, educational and medical.
Free Shipping on orders over £75
Free lifetime remote support on all products
TPM3D S Series S320HT
Removable Build Unit and manual trolley for ease of post processing. The removable build unit fits into the Break Out Station which evenly cools the entire build down to 60°C making it safe and easy to handle whilst eliminating any part warping. You can purchase a separate build unit to reduce machine down time, have one build unit in the S320HT building parts and one cooling the previous build in the break out station.
The Break Out Station is designed for depowdering printed parts easily. You can also use the integrated sieves to filter any un-sintered powder for reusing in the next builds.
Small machine footprint giving you a compact SLS machine with maximum printing area and occupying minimal amount of space in your workshop.
Smart powder loading system. The powder loading bins easily slide out giving you greater access to fill up with your SLS material. When printing the build, these powder loading bins efficiently distribute the correct amount of powder layer by layer whilst also removing any debris or large clumps that could ruin the build.
Active cooling of the finished build in the 3D printer is achieved by the use of room temperature air to uniformly cool the build unit to 80°C, ensuring a safe and stable printing area.
An easy to read LCD display makes the S320HT easy to operate.
Get high, comprehensive performance from a high quality SLS 3D printer at an affordable price point.
Integrated Nitrogen Generator
The TPM S Series of SLS 3D printers come with a nitrogen generator integrated into the machine. Nitrogen is used to effectively purge the build chamber of any oxygen before printing starts. The built in generator will emit a small amount of nitrogen throughout the build to keep the oxygen levels low and keep part accuracy and quality high. By having the nitrogen generator integrated it significantly reduces cost to the end user and also eases the process as there is no need to purchase and fit a separate generator.
Included with the Machine
Open break out station
Laser temperature regulator
Start up kit including useful tools and accessories
- Layer Thickness / Print Precision
- 0.06 ~ 0.2 Adjustable. Recommended Values 0.12
- Printing Speed
- 10-25 mm/h
- Operating Temperature
- 350 / 300 ℃
- Max Build size (WxDxH)
- 310 x 310 x 380
- 1.30 x1.26 x2.06m
- File Input Format
- Scan Speed
- Operating Voltage
- Supported Software
- Windows 10.0 /Solid View Pro RP,64bit or Voxeldance Additive Premium
- Laser spot size
