TPM3D S Series S480

The S480 SLS printer from TPM3D's S Series features a high scanning speed with a large formatting space. Take full advantage of the larger build volume with a higher scanning speed and create larger parts quickly and easily in a variety of high performance materials.
Request a quote

Compare now

Free Shipping on orders over £75


Free lifetime remote support on all products

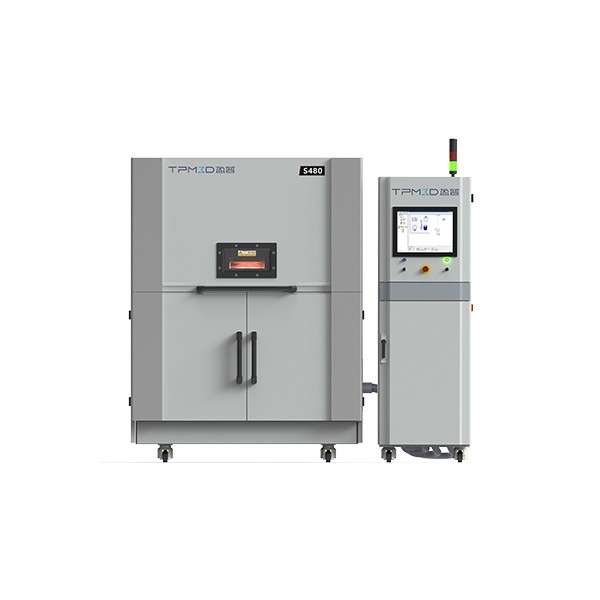

TPM3D S Series S480

TPM3D have over 20 years experience in the field of producing industrial Additive Manufacturing machines. The TPM3D S range of industrial SLS 3D printers have been developed with Stratasys technical experts and optimised for use with industrial applications. The S480 SLS printer from TPM3D's S Series features a larger build volume of 480 x 480 x 600mm, teamed with the higher scanning speed means you can create larger parts quickly and easily With an expanding range of technical materials, 3D printing is disrupting traditional manufacturing, giving you greater geometric freedom and optimised material properties.


An LCD display makes the S480 easy to operate

A large forming space teamed with a high scanning speed allows you to create large parts easily and efficiently in one piece

Ideal for manufacturing large quantities of plastic parts or small-volume parts in batch

Removable Build Unit and manual trolley for ease of post processing. The removable build unit fits into the Break Out Station which evenly cools the entire build down to 60°C making it safe and easy to handle whilst eliminating any part warping. You can purchase a separate build unit to reduce machine down time, have one build unit in the S480 building parts and one cooling the previous build in the break out station

Smart powder loading system. The powder loading bins easily slide out giving you greater access to fill up with your SLS material. When printing the build, these powder loading bins efficiently distribute the correct amount of powder layer by layer whilst also removing any debris or large clumps that could ruin the build

Active cooling of the finished build in the 3D printer is achieved by the use of room temperature air to uniformly cool the build unit to 80°C, ensuring a safe and stable printing area

Smart, easy to operate in built software that allows you to add and delete parts to the build space

Achieve even better post processing with the addition of the post processing station. This smart system features smart dust extraction for the excess powder and integrated powder mixing. Sieved powder is automatically moved to the mixer chamber and mixed at a set ratio with virgin powder ensuring greater part quality. This mixed powder is transported to the build unit ready for the next print. Completely eliminating the need to manually move heavy powders around

Car engine part printed on S480

Integrated Nitrogen Generator

The TPM S Series of SLS 3D printers come with a nitrogen generator integrated into the machine. Nitrogen is used to effectively purge the build chamber of any oxygen before printing starts. The built in generator will emit a small amount of nitrogen throughout the build to keep the oxygen levels low and keep part accuracy and quality high. By having the nitrogen generator integrated it significantly reduces cost to the end user and also eases the process as there is no need to purchase and fit a separate generator.


The entire TPM3D range are ideal for a variety of applications. Thanks to the ability to print at high temperatures, the TPM3D industrial SLS machines are idea for using with high performance engineering materials to produce both prototypes and end use parts. The TPM3D SLS machines have an open materials platform allowing you a greater material choice. They have optimised their own range of TPM3D SLS powders for their S range.









Included with the Machine

S480 SLS

Laser temperature regulator

Powder/Part Processing Station

Manual Trolley

Start up kit including useful tools and accessories

For further information and advice on how TPM3D can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:
