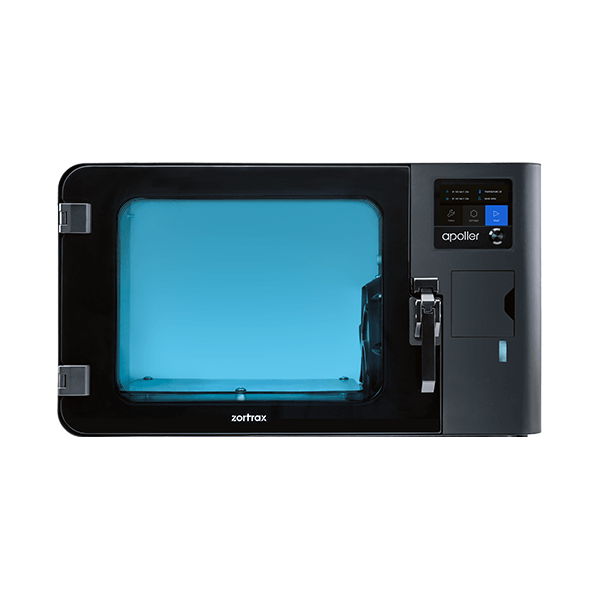

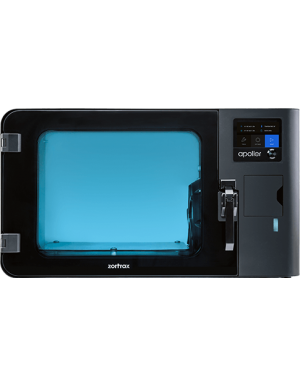

Zortrax Apoller Smart Vapor Smoothing

    Achieve automatic post-processing with the Zortrax desktop smart vapor smoothing machine. Produce the look of an injection moulded part from your FDM prints. The Smart Vapor Smoothing technology evenly smooths out all surfaces including all complex geometries and interlocking or movable parts. Ideal for small to medium production runs.

    £4,832.50
    Tax included
    Quantity



    Free Shipping on orders over £75



    Free lifetime remote support on all products

    logo

    Zortrax Apoller Smart Vapour Smoothing

    Automatic post-processing with the Zortrax desktop smart vapor smoothing device. Ideal for low to medium production runs. Achieve the look of an injection moulded part from your FDM prints with the industrial performance managed by the proprietary algorithms.


    Three Simple Steps

    Three step process

    Print- Print parts on any FDM, FMM or LPD 3D Printer. Smooth- Place parts in the chamber and select the smoothing option. Relax- After 3 hours your parts are ready!


    Smart Vapour Smoothing Technology

    Smart Vapor Smoothing technology evenly smooths out all surfaces including all complex geometries and interlocking or movable parts. This is achieved by the automatic management of temperature, pressure and solvent concentration in the smoothing chamber. See below for a part before Apoller vapor smoothing and after.

    Smoothed Part


    Advance Vapor Circulating System

    The vapours are circulated upwards to evenly coat the parts. The Apoller Smart Vapor Smoother uses less solvent for any fragile or intricately detailed parts to ensure they remain in tact. Once its finished, the condensation system retrieves the excess solvent for reuse.

    Circulating system


    Key Features

    Speed and ease of use- Fully automated smoothing process with machine set up taking only 3 hours.

    SVS technology- Smart Vapor Smoothing is the Zortrax proprietary technology for automatic vapor smoothing.

    Consistent results- All parts are evenly smoothed time and time again. With no limitations on size or geometry.

    Compatibility- Acetone and MEK are used to smooth models produced on FDM, FFF, LDP 3D printers in ABS, HIPS or ASA based filaments.

    zortrax apoller



    For further information and advice on how Zortrax 3D Printing can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Request a callback

    Data sheet

    Internal Chamber Dimensions
    300 x 250 x 250 mm (11.8 x 9.8 x 9.8 in)
    Operating Temperature
    -20° C (-4° F) to 90° C (194° F)
    Operating System
    Android
    Power Supply
    24 V DC @ 21 A, 500 W
    Compatible materials
    SOLVENT: Pure Acetone or pure MEK only | ZORTAX: Z-ABS, Z-ULTRAT, Z-ULTRAT Plus, Z-ASA Pro, Z-HIPS
    Compatible materials
    Can be used on: ABS, ASA, HIPS
    AC input
    110 V ~ 13.6 A 50/60 Hz ; 240 V ~ 6.3 A 50/60 Hz
    Connectivity
    Wi-Fi, Ethernet, USB
