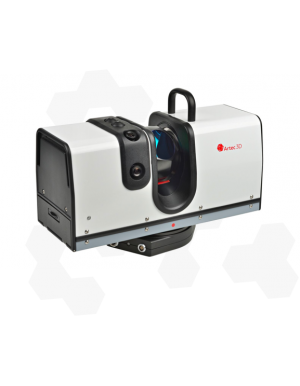

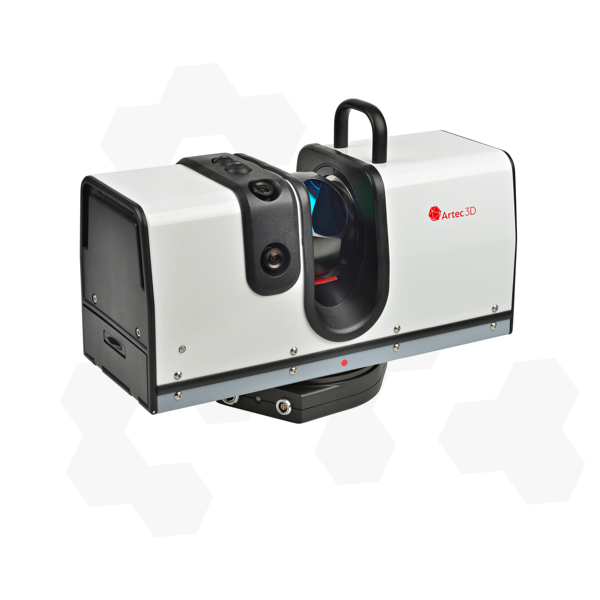

Artec Ray 3D Scanner
One of the fastest and most accurate laser scanners of its kind, the Artec 3D Ray captures data more accurately than any other large-object 3D scanner available. It is versatile, portable and user-friendly, as it can be positioned on a tripod and operated with the touch of a button.
Ideal for construction, inspection, and product design, it can be used indoors and outdoors for every application.
iMakr Verdict
Capture large objects with high-precision and award winning sub-millimetre distance accuracy. The Ray scanner is one of the fastest and most accurate laser scanners for large objects such as wind turbines, ship propellers, aeroplanes and buildings. The ultra-precise data scans are clean and keep noise levels at an absolute minimum, boosting Artec's reputation as industry front runners.

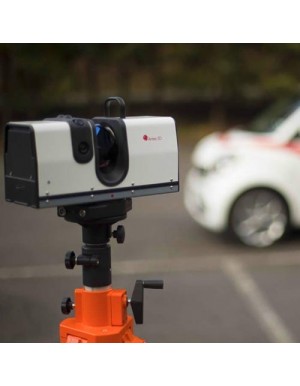

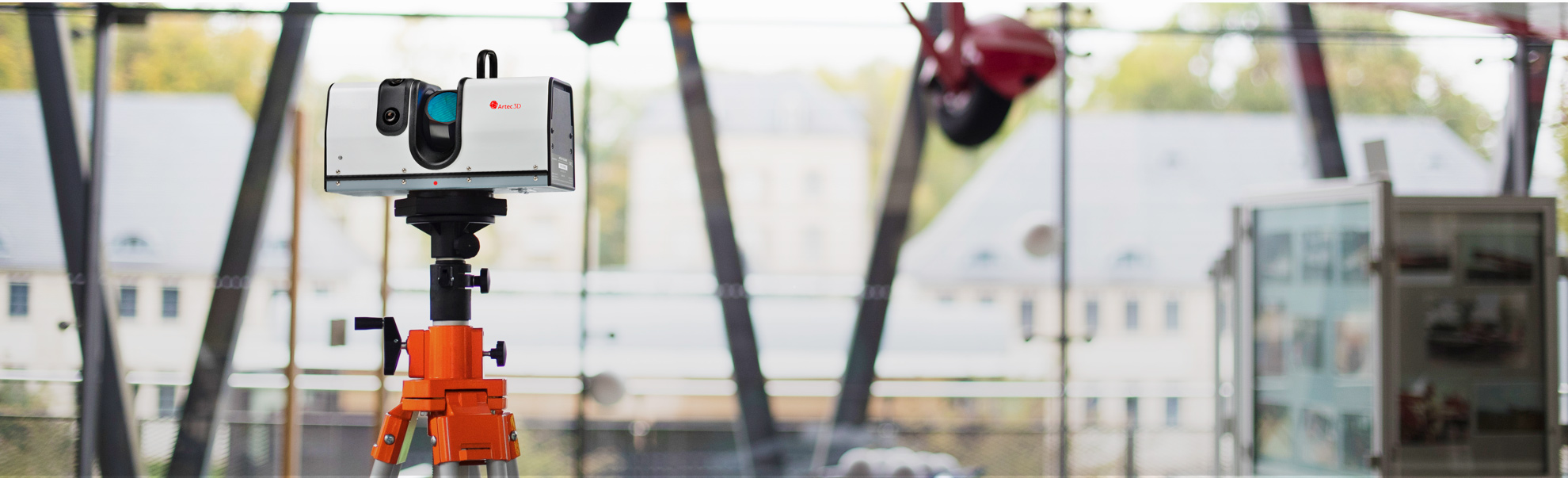

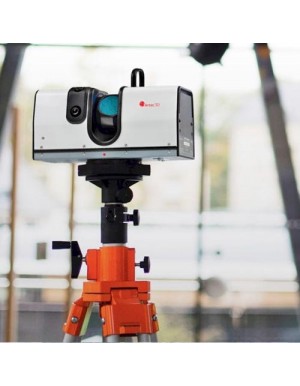

The Artec Ray is a light-weight, versatile, portable, and user-friendly 3D scanner. With no need for any lengthy preparations, you can 3D scan almost anything by simply mounting your Artec Ray on a tripod in front of your object and pressing a button!
Key Features
Ultra-High Precision
Seamless data scans
Versatile for applications
Long-range scanning
Artec Industries
Design
Prototyping
Construction
Packaging
Entertainment
Orthopaedics
Prosthetics
Cosmetics
Apparatus
Scientific Research
Cultural Heritage
Museum Displays
CGI
Archiving
Discovery
Automotive
Quality Assurance
Industrial Metrology
Artec 3D is named 3D Scanning/Metrology Company of the Year!
3D Printing Industry Awards. 2019.3D Printing Industry rewards Artec with prestigous prize, highlighting their superiority within the field
Produktinformation
- Farve
- Two fully integrated 5 megapixel cameras
- Nettovægt
- 5.74 kg
- Scan size
- Range: up to 110 m
- Scanning Technology
- Phase Shi , Hemispherical Scanner with 360° x 270° field of view
- Power Consumption
- 30 W
- Scanning Software
- Geomagic Design X
- Power Supply
- External: 14 - 24V DC, 30 WInternal: Two Li-Ion 14V, 49Wh batteries,powers the scanner for up to 4 hours
- Export formats
- OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX,E57, XYZRGB, BTX, PTX, CSV, DXF, XML
- Scan Mode
- Autonomous or via USB
- Scan Speed
- 208,000 pts/sec
- Point Distance
- Min. Vertical Point Density: 12 points/degreeMax. Vertical Point Density: 80 points/degreeMin Horizontal Point Density: 2 points/degreeMax Horizontal Point Density: 80 points/degree
- Manufacturer
- Artec3D
- Supported OS
- Windows 7, 8 or 10 – x64
