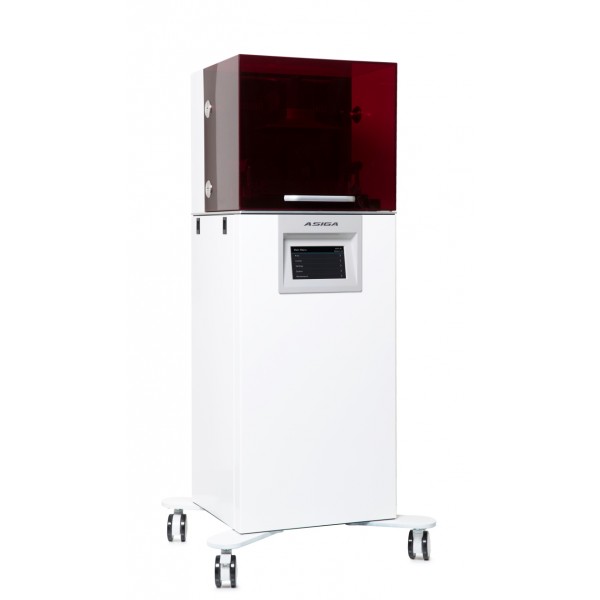

Asiga PRO 4K
The Asiga PRO 4K 3D printer uses the latest DLP imaging technology to achieve the largest print envelope in the Asiga range, with precision, reliability and speed for the most demanding production applications.
Includes FREE SHIPPING and a 1-litre bottle of Asiga resin of your choice.
The Asiga PRO 4K uses the latest 4K DLP imaging technology, which means that it can print highly detailed models without compromising on available printing area, making it an ideal choice for high volume production.
As with all Asiga machines in the MAX and PRO series, the PRO 4K uses an open materials system which allows the use of suitable third-party and industry standard resins.
The Asiga PRO 4K is available in either a 65 micron or 80 micron configuration, with a choice of a 405nm or 385nm (UV) light source.
|Model||PRO 4K65||PRO 4K80|
|Build Volume (x,y,z)||176x99x200mm||217x122x200mm|
|Resolution||65 microns||80 microns|
Asiga PRO 4K For Jewellers:
With such a large build volume available, it is possible to print up to 175 rings in just an hour.
Asiga PRO 4K For Dental Labs:
The Asiga PRO 4K is compatible with many industry standard resins, including brands such as NextDent, Detax, Pro3dure and Keystone
Asiga PRO 4K For Audiology Labs:
Up to 70 Earshells can be printed within 40 minutes. Offering an approximate annual production rate of 130000 earshells/earmoulds.
Learn more about the Asiga PRO Series of printers by calling the telephone number at the top of the page, or request a call back from one of our advisors via the button below:
- Printing Technology
- Build Volume W x D x H (mm) // W x D x H (inch)
- 4K65: 176x99x200mm (6.94x3.9x7.87 in); 4K80: 217x122x200mm (8.54x4.8x7.87 in)
- Layer Thickness / Print Precision
- 1 micron
- 140 kg, 309 lb
- Material type
- Open - Asiga materials and suitable third party materials
- XY Resolution
- 4K65: 65 microns; 4K80: 80 microns
- 465x420x1370mm (18.3x16.5x53.9 in)
- Wifi, Ethernet
- Printer Software
- Asiga Composer
- Software Compatibility
- Windows, MacOS and Linux
- Input Voltage / Power
- Shipping Dimensions
- 910x640x1560mm (35.8x25.1x61.4 in)
- Shipping Weight
- 205 kg, 452 lb
