Sinterit Lisa 2
    • Sinterit Lisa 2

    Sinterit Lisa Pro 3D SLS printer

    The Sinterit Lisa Pro is a desktop SLS 3D printer capable of producing industrial, high quality prints. Featuring a larger build space and a Nitrogen chamber, enabling the ability to experiment with different materials.

    With every purchase, iMakr offers premium support as well as in-depth training and sample prints so we can ensure you are getting the most out of your printer to drive business.

    Jeg ønsker et tilbud





    Spørg os om vores rabatter til uddannelse


    More industrial possibilities brought to the desktop from the Lisa Pro

    The Lisa Pro is a powerful new machine that brings bigger industrial parts to the desktop. Print prototypes, products, and models with surgical precision and without supports. Thanks to its Nitrogen chamber, the Lisa Pro allows users to experiment with a completely new range of materials while still being compatible with PA12 smooth, PA11, Flexa Black, and Flexa Grey.


    Sinterit Lisa Pro SLS Printer


    How does SLS technology work?

    Using Selective Laser Sintering technology, powder is loaded into a feed bed and spread layer by layer onto the build platform. The build chamber is heated to warm the powder, and a laser heats the powder in the shape of your model. The powder holds the print in place, removing the need for support material and increasing the design freedom of the part.


    KEY FEATURES:

    • Surgeon-like precision: 0.1 mm Min. detail size on objects
    • Bigger build size: Size does matter when you can print up to up to 316 mm diagonally
    • Sleek and aesthetic design: Keeping the black and red theme, the Lisa Pro fits in nicely with your workbench

    Durable Parts

    Durable, moveable parts: 41 MPa Tensile Strength with no supports needed in one piece; ready for use off the printer

    Nitrogen Chamber

    Experimental Nitrogen Chamber: Allows user to create and experiment with their own formulas

    Software

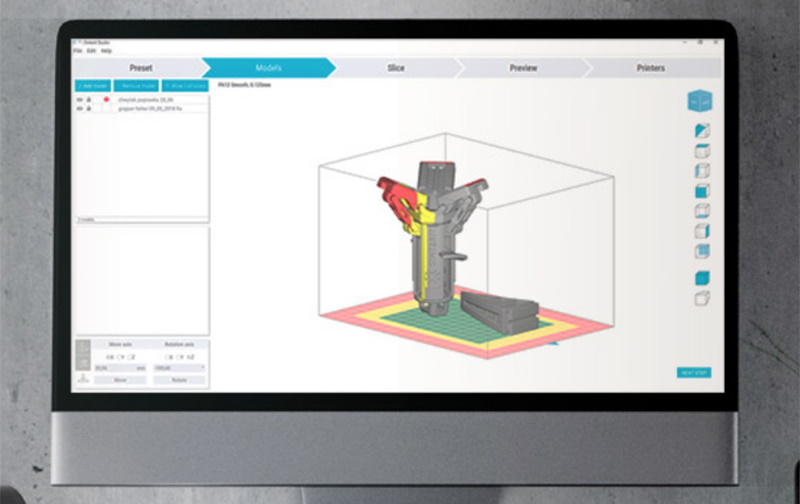

    New Software: Sinterit Studio 2019 is a smart and simple dedicated software for preparing your models

    For further information and advice on how Sinterit SLS printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Jeg vil gerne ringes op

    Sinterit
    SINT00008

    Produktinformation

    Printing Technology
    SLS
    Recommended min. wall thickness
    from 0.4 mm (0.015 in.)
    Farve
    Black/Red
    Nettovægt
    90kg (198lbs)
    Material
    Refresh ratio: from 0-50% depending on the material
    Material type
    Powder PA11, Powder PA12 smooth, Powder Flexa black, Powder Flexa gray, Nitrogen use materials
    Z-axis Layer Thickness
    [min-max]: 0.075-0.175 mm (0.003-0.007in.)
    Dimensions
    690 x 500 x 880 mm (27.1 x 19.7 x 34.6 in.)
    Special Features
    LCD capacitive colour screen, Built-in camera
    Build Plate
    150 x 200 x 260 mm (5.9 x 7.9 10.2 in.)
    Diameter Tolerance
    from 0.5mm (0.019 in.)
    XY Positioning Accuracy
    from 0.05 mm (0.02 in.)
    Printer volume WxDxH (mm) // WxDxH (inch)
    [Max Diagonally]: 316mm (12.4 in)
    File Format
    STL, OBJ, 3DS, FBX, DAE, 3MF
    Connectivity
    Wifi, USB port
    Printer Software
    Sinterit Studio 2019
