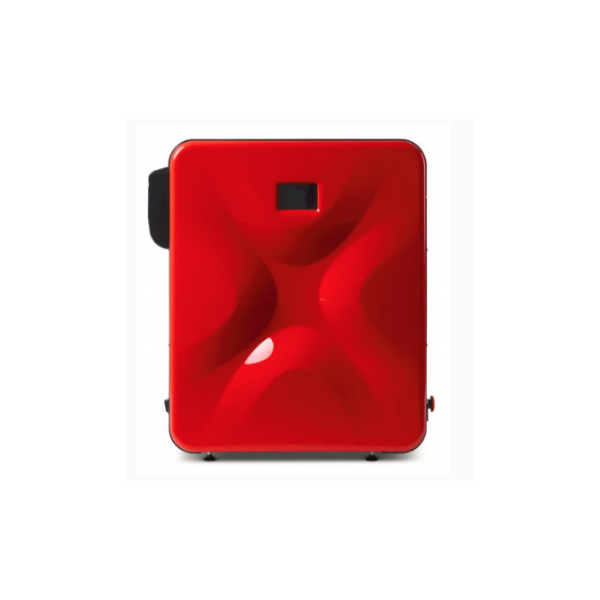

    Sinterit Lisa - New Generation

    Bringing powder based SLS printing to the desktop, the NEW Sinterit Lisa New Generation has all the features users love about the original and some new enhancements! Print otherwise impossible objects with no support, and utilise the entire build volume by stacking parts. Perfect for prototyping and product design.

    With every purchase, iMakr offers premium support as well as in-depth training and sample prints so we can ensure you are getting the most out of your printer to drive business.

    Includes FREE shipping.

    €8,990.00
    Tax included
    Quantity
    Available to order. Delivery within 2-3 weeks

    iMakr's Verdict

    The Sinterit Lisa is a breakthrough in desktop 3D printing. Using Selective Laser Sintering technology, powder is loaded into a feed bed and spread layer by layer onto the build platform. The build chamber is heated to warm the powder, and a laser etches the powder in a similar way to SLA. The powder holds the print in place, removing the need for support material, and increasing the design freedom of the part.


    Key Features

    • SLS Precision
    • Support free: Print complex objects with no support structure.
    • Batch printing: Utilise the full volume of the print area by stacking parts without needing them to touch.
    • Build Volume: Larger build volume of 245 mm (diagonally)
    • Easy maintence: Easy access to upper heating unit
    • Steel Frame: Improved security, remove backlash, and simplified assembly and cleaning
    • NEW Mounting Feet: Rubber tips prevent printer from sliding



    Sinterit Steel Insulation

    Steel Insulation Cover- Ensures better thermal insulation, simplify maintenance, and lengthens insulation lifetime

    Sinterit Pyrometers

    Exposed Pyrometers- Guarantees better temperature measurement

    Sinterit Laser Glass

    Laser Protective Glass- Glass framed in hermetic cover, tight and easy mounting

    Sinterit Lock

    Gasket Lock- Improved design of lock and gasket to better prevent temperature loss.

    Reinvented Front Panel- Intuitive assembly method facilitates cleaning of space under the beds as well as printer transportation

    Sinterit Overflow

    Gap and capactiy of overflow bin- Makes cleaning the printer faster



    Whats in the Box ?

    • Sinterit Lisa SLS 3D printer
    • Print removal box
    • Powder scoop
    • Sinterit Lisa manual
    • USB stick with Sinterit Studio software
    • Sinterit Studio manual

    For further information and advice on how Sinterit SLS printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below.

    Request a callback

    Sinterit
    SINT00001

    Data sheet

    Printing Technology
    SLS
    Build Volume W x D x H (mm) // W x D x H (inch)
    150 x 200 x 150 mm (5,9 x 7,9 x 5,9 in)
    Layer Thickness / Print Precision
    Diagonally: 245mm, PA12 smooth: 90 x 120 x 130, Flexa Black/Grey: 110 x 160 x 150
    Recommended min. wall thickness
    0.8 mm
    Weight
    35KG (77 lbs)
    Powder Diameter
    20 - 100 microns
    Certification
    CE, FCC
    Printing Material
    Powder PA12: Rigid, durable, temperature resistant, chemical resistant, Powder FLEXA BLACK: Elastic
    Layer Thickness (microns)
    min: 0,075 (3,0 mils)
    Monitoring Camera
    Yes
    Power Supply
    One phase, recommended AC outlet power 1,5 kWVoltage 110/120 V or 220/230 V
    Heated Chamber
    Max: 190C / 374 F
    File Format
    STL, OBJ, 3DS, FBX, DAE, 3MF
    Supported Software
    Sinterit Studio 2016
    Manufacturer
    Sinterit
    Minimal wall thickness
    0,4 mm
    Touch screen
    LCD 4"
    Connectivity
    USB, Wi-fi
    Supported OS
    Microsoft Windows
