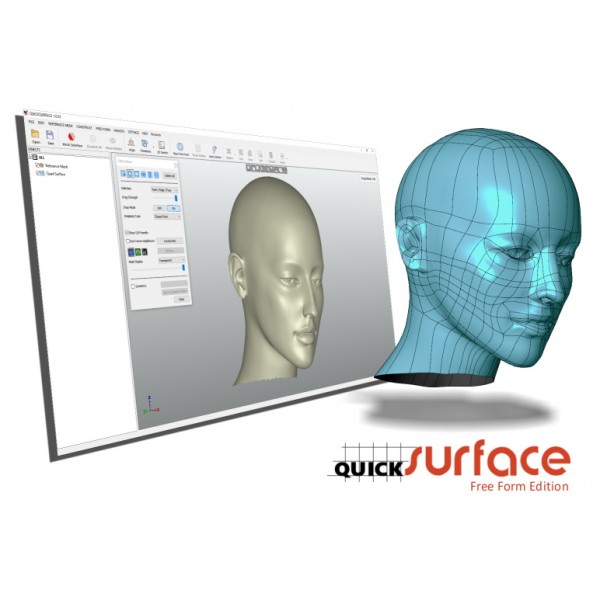

QUICKSURFACE is a design and reverse engineering solution which can work with data from almost any 3D scanner capable of exporting STL files or PTX point clouds. Featuring stand-out tools such as free form surface modelling, mesh realignment with real-time colour deviation map and automatic surfacing, Quicksurface is an ideal solution for designing and reconstructing organic scanned shapes and exporting to an editable format. The software is easy to use and quick to learn, so is perfect for professionals and non-professionals who wish to get up to speed with minimal disruption to workflow. A customisable user-interface allows the operator to set-up a familiar work environment to further streamline the process. Quicksurface Free Form is a powerful, flexible and affordable solution for any user wanting to design or re-design complex organic shapes.
Quicksurface Free Form Key Features
Import Scan Data
Import scanned data from any scanner as industry standard STL mesh files. For long range scanners, import point cloud data using the PTX file format. Reduce the number of polygons while keeping the original reference mesh for best results.
Orient The Reference Mesh
Orient the imported mesh with respect to the world coordinate system with manual positioning. Mirrored points of the mesh can be displayed to correctly set-up symmetrical objects.
Free Form Surface Modelling
Take advantage of Quicksurface's unique Quad surface to manipulate and reconstruct free form organic surfaces. A real-time analyzer and snap-to-mesh technology allow even non-professionals to create shapes in no time.
Easily create surfaces on organic shapes with just a click of a button.
Export For Further Design Or Analysis
Export reconstructed surfaces or solid models in industry standard STEP or IGES formats for use in other design packages.
For further information and advice on how Quicksurface reverse engineering software can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:
*The images on this page cannot be modified for commercial or advertising use, nor can they be copied or reproduced in any form without the permission of KVS Ltd, Bulgaria.
- Software Compatibility
- Windows 10
