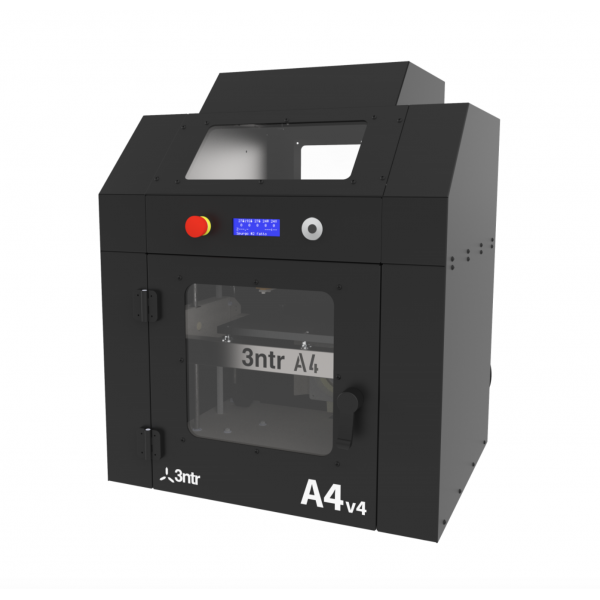

The A4v4 by 3ntr is the ultimate dual nozzle 3D printer with expert precision in a compact design. The A4v4 is available in either a 2 or 3 nozzle setup, customisable to your printing needs.
Free shipping on orders over $500 to mainland US
Free lifetime remote support on all products
The A4V4 by 3ntr is a multi-material compact 3D printer built to tackle complex projects. This printer features two or three nozzles, depending on your printing needs, giving you the ability to print even more intricate multi-polymer prints. With stainless steel components, the A4V4 is rugged, built to last and guarantees long term efficient performance.
Customisable Printing Nozzle Setup
The A4v4 is capable of handling multi-material prints, powered by your choice of a two or three printing nozzle setup. Personalise your 3ntr 3D printer for your printing needs.
Generous printing volume
The A4v4 features a print volume up to 296 x 191 x 200 mm.
Industrial Build Quality
With stainless steel construction and machine controls that are built to last, the A4v4 is equipped to handle 24/7 performance.
True Heated Chamber
Maintaining constant thermal conditions of up to 90C inside the heated chamber, the A4v4 ensures minimal warping in with ABS,ASA, PCABS, PA, TPU type filaments.
Engineered to endure long and demanding prints, liquid cooled print heads ensures effective handling of polymers at any temperature
Removable Print Tray for Easy Maintenance
The custom carbon fibre removable printing tray allows for easy cleanup, simply clean the printing tray once a month for best results. The removable printing tray also allows for easy print removal, as the tray cools the print is easily released, without the hassle of added adhesives.
Compatible With 3ntr SSI Software
Giving full access to the complexities of 3ntr systems, SSI (Smart Slicer Interface) is capable of handling intricate projects with just a few clicks. Customised to the function of the 3ntr 3D printer range, SSI is able to handle multiple polymers at the same time, while preventing users from mixing incompatible polymers before print. SSI generates post-print reports, suitable for both service and industrial environments.
- Printing Technology
- Build Volume W x D x H (mm) // W x D x H (inch)
- 296 x 191 x 200 mm
- Layer Thickness / Print Precision
- 0.1 to 0.6mm (min to max)
- ABS, ABS ESD+, ABS HD, ABS FAST, PC ABS, PETG, ASA, ELASTO 85, ELASTO, 95, zWAX, IGLIDUR, NYLON+, GLASS+, CARBON+, nPOWER
- Filament Diameter (mm)
- 2.85mm as standard
- Nozzle Temperature
- 450 C max
- 528 x 515 x 615 mm
- Slicing Software
- XY Positioning Accuracy
- 0.011 mm
- Operating System
- Windows 32/64
- Heated Chamber
- 90 C max
