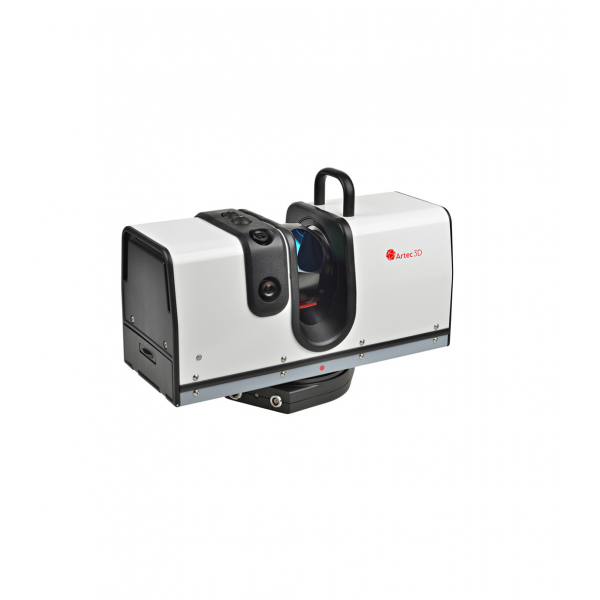

    Artec Ray

    One of the fastest and most accurate laser scanners of its kind, the Artec 3D Ray brings the cleanest 3D data captures than any other large-object 3D scanner available. It is versatile, portable, and user-friendly and by simply mounting your Artec Ray on a tripod in front of your object and pressing a button!

    Ideal for construction, inspection, and product design, it can be used indoors and outdoors for every application.

    Request a quote



    Free shipping on orders over $500 to mainland US



    Free lifetime remote support on all products


    iMakr Verdict

    Capture large objects with high-precision and award winning sub-millimetre distance accuracy. The Ray scanner is one of the fastest and most accurate laser scanners for large objects such as wind turbines, ship propellers, aeroplanes and buildings. The ultra-precise data scans are clean and keep noise levels at an absolute minimum, boosting Artec's reputation as industry front runners.

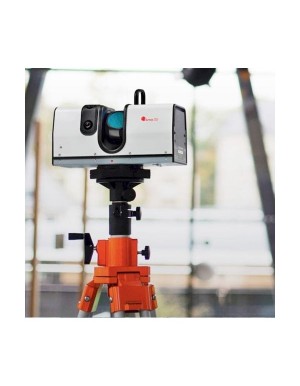

    The Artec Ray is a light-weight, versatile, portable, and user-friendly 3D scanner. With no need for any lengthy preparations, you can 3D scan almost anything by simply mounting your Artec Ray on a tripod in front of your object and pressing a button!



    Key Features
    Artec Accuracy

    Ultra-High Precision

    Sub-millimetre precision and an angular accuracy of 25 arc-seconds to ensure you capture every detail
    Artec Cleanest 3D data Capture

    Seamless data scans

    Cleanest 3D data capture for minimum post-processing time
    Artec Versatile

    Versatile for applications

    Ideal for reverse engineering, inspection and construction. Scan large objects both indoors and outdoors
    Artec Long-range scanning

    Long-range scanning

    Scan up to 110 m away with this professional LIDAR solution

    Artec Industries
    Reverse Engineering
    Reverse Engineering
    Design
    Prototyping
    Construction
    Manufacturing
    Manufacturing
    Packaging
    Entertainment
    Medical
    Medical
    Orthopaedics
    Prosthetics
    Cosmetics
    Apparatus
    Teaching and Training
    Teaching and Training
    Scientific Research
    Cultural Heritage
    Architecture and Design
    Architecture
    Museum Displays
    CGI
    Archiving
    Discovery
    Aerospace and Automotive
    Aerospace
    Automotive
    Quality Assurance
    Industrial Metrology

    Artec 3D is named 3D Scanning/Metrology Company of the Year!
    3D Printing Industry Awards. 2019.

    3D Printing Industry rewards Artec with prestigous prize, highlighting their superiority within the field

    Artec Ray 3D Scanner

    Request a callback

    Data sheet

    Colour
    Two fully integrated 5 megapixel cameras
    Weight
    5.74 kg
    Scan size
    Range: up to 110 m
    Scanning Technology
    Phase Shi, Hemispherical Scanner with 360° x 270° field of view
    Power Consumption
    30 W
    Scanning Software
    Geomagic Design X
    Power Supply
    External: 14 - 24V DC, 30 WInternal: Two Li-Ion 14V, 49Wh batteries,powers the scanner for up to 4 hours
    Export formats
    OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX,E57, XYZRGB, BTX, PTX, CSV, DXF, XML
    Scan Mode
    Autonomous or via USB
    Scan Speed
    208,000 pts/sec
    Point Distance
    Min. Vertical Point Density: 12 points/degreeMax. Vertical Point Density: 80 points/degreeMin Horizontal Point Density: 2 points/degreeMax Horizontal Point Density: 80 points/degree
    Manufacturer
    Artec3D
    Supported OS
    Windows 7, 8 or 10 – x64
