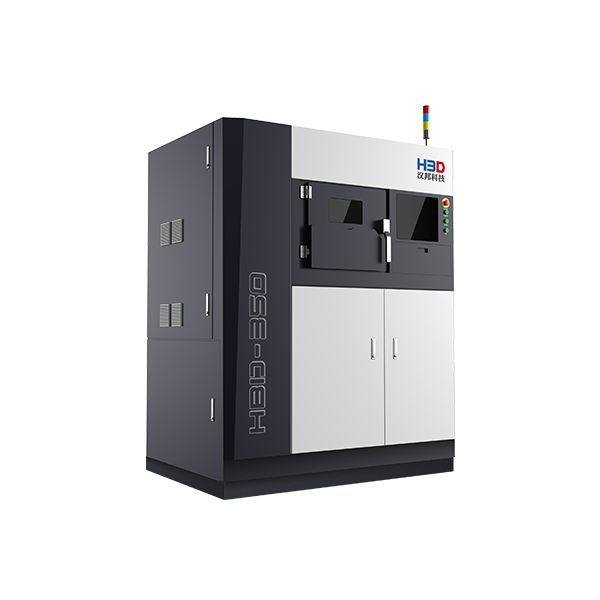

HBD-350 Metal 3D Printer

    The HBD-350 is a Selective Laser Melting machine (SLM) that produces high quality, metal parts. It comes as a complete solution with many supporting accessories. Contact iMakr to find out how we can tailor your HBD-350 solution for you.
    Request a quote



    Free shipping on orders over $500 to mainland US



    Free lifetime remote support on all products

    logo

    HBD-350

    The HBD-350 from best selling Selective Laser Melting machine (SLM) manufactures HBD, comes as a complete solution for your metal 3D printing needs. HBD are committed to becoming true experts in the metal additive manufacturing world. Optimising their SLM machines to work well with a variety of materials to ensure many applications can adopt this cutting edge technology and improve their part production. The larger build volume of the HBD 350 is specially optimised to fit most main stream moulding sizes. Challenging traditional manufacturing methods, the HBD SLM Machines raise the bar in all aspects of part production. A fully customisable system giving you full control over your SLM printer and its auxiliaries.

    Compatible with a variety of materials including: Stainless steel, Cobalt-chrome alloy, Tool steel, Titanium alloy, High temperature alloy, Hastelloy, and some precious metals, HBD-350 is suitable for a diverse range of applications.


    350 machine and part.JPG


    Key Features

    Three light indicators to easily show the different machine stages

    HBD 350 is set on strong locking caster wheels, allowing the machine to be relocated easily then locked in place

    Door open detection system, alerting the user when the door is open or closed, providing a crucial safety aspect to the process

    Innovative systems. Atmosphere purification system which automatically monitors the oxygen content and recycles clean and collected air. High speed deoxygenation system which also includes high precision oxygen content monitoring

    Easy access to the printing area with reduced powder exposure to yourself or the environment with the sealed powder hatch, allowing you to de-powder parts easily and add more powder if needed

    Real time printing status showing you information including current layer, build parameters and many more

    Use the industry standard Materialise Magic's software with your HBD System, available as part of the complete HBD system. Materialise Magics features intelligent slicing, printing checks and error detection, support generation, intuitive part orientation functions and many more

    Intelligent powder feeding system automatically feeds powder from the top rather than the bottom, also features two way powder recoating

    Ensure printing consistency with adjustable Z direction focus on the dual lasers, water and air cooled temperature control which maintains long-term stability

    complext part

    3D Printed Topology Optimised Aerospace Part

    Materialise magics software

    Materialise Magics Programming Software


    Advantages of HBD SLM Technology

    Mould & Die-Traditional manufacturing methods for ,oulds and dies cause uneven cooling due to geometric restrictions. SLM can produce more complex designs with conformal cooling chanels. These will achive fast, uniform cooling and better results in the end part. The build volume of HBD 350 is specially optimised for mould and die production, giving you a greater freedom in design and complexity of part geometry.

    3D printed mould part

    3D Printed Sprue Brush for Accepting Extrusion Nozzle

    Aerospace- 3D Printing in aerospace allows for substantial weight saving. Parts can be manufactured with internal lattice structures to reduce weight and stress and improve stability and strength. Topology optimisation can be easily schieved with SLM technology. End use pars can be printed in one process compared to traditional manufacturing methods which require the production of moulds or tooling.

    Aerospace housing

    3D Printed Aerospace Housing Part


    prostetic joint

    3D Printed Prostetic

    Hip joint

    3D Printed Bio-compatible Hip-Joint


    Material Options Available For The HBD SLM Machines

    SLM Technology offers an extensive range of material options. The HBD 350 can print both prototypes and end-use parts easily. By combining Materialise Magics into your HBD system you can programme builds efficiently by using their innovative features such as part orientation functions, Support creation, Part nesting checks, Intelligent slicing.

    Mould manufacture

    Tool Steel 18Ni300- Hardening steel characterised by high strength and high toughness. Easy to post process after printing. Applications- Mould Manufacturing, Industrial Components.

    turbine

    Chrome-Cobalt Alloy CoCrMo- A mix of pre-alloyed powders for printing. Excellent mechanical properties, resistance to corrosion and heat. Applications- Medical field, Turbines and aircraft engine parts, Parts requiring thin walls.

    Surgical tools

    Titanium Alloy TC4- Lightweight alloy featuring good mechanical properties, corrosion resistant, good biological compatibility. Applications- Lightweight structures and components, Orthopaedic implants, surgical tools, guide plates.

    Erospace

    Nickel Based Alloy Ni718- Good ageing and corrosion resistance. High temperature strength and fracture strength up to 700°C temperatures. Applications- Turbine components, Aerospace and Rocket components.

    Ring

    Stainless Steel 316L- High strength and corrosion resistance. Overall performance is better than 310 and 304 stainless steel. Applications- Personal products such as watches, jewellery, eyewear frames. Industrial parts in automotive, Marine industries.

    Car part

    AI Alloy AlSi10mg- Good properties for producing parts with thin walls and complex geometric designs. Significantly enhanced strength and hardness due to silicon/magnesium contents. Applications- Functional parts. Parts requiring high thermal performance.


    Motorbike Intake Part

    3D Printed Motorbike Intake Part

    Example Applications

    Aerospace

    Medical

    Automotive

    Mould making


    HBD-350 Complete Solution:

    Tailor your HBD SLM 3D Printer to your needs. See the list below for the additional options available for the HBD.

    HBD-350 SLM 3D Printer

    External purification system

    Small laser chiller

    Intelligent powder feeding system

    Materialise Magics & HBD solutions build processor

    HBD build expert

    Process parameters

    Parameter package editing and self built

    Base plate

    Filter

    Flexible scraper

    Sieving station

    Powder drying oven

    Vacuum cleaner

    Heat treatment furnace

    Sandblasting machine

    Multi functional tool cart

    Powder collecting tank

    Warranty, Technical support, Training


    sprue bush

    3D Printed Mould


    For further information and advice on how HBD SLM 3D Printers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Request a callback

    Data sheet

    Printing Technology
    SLM
    Build Volume W x D x H (mm) // W x D x H (inch)
    325mm x 325mm x 400mm
    Layer Thickness / Print Precision
    30μm-100μm
    Print accuracy
    0.05-0.2mm
    Material
    Stainless steel, Cobalt-chrome alloy, Tool steel, Titanium alloy, High temperature alloy, Aluminum alloy, Hastelloy, Tungsten, Tantalum and some other refractory metals.
    Slicing Software
    HBD Build Expert
    Scan Speed
    ≤10000mm/s
    Supported Software
    Materialise Magics
