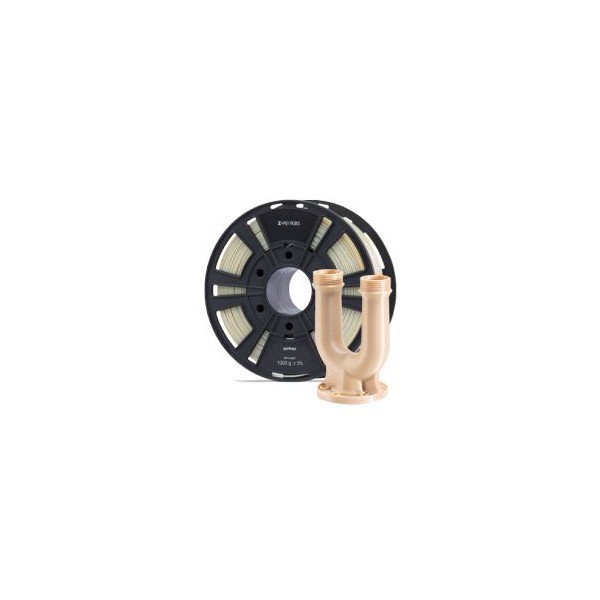

Zortrax Z-PEI 9085 1KG

Z-PEI 9085 (Ultem) features a strength to weight ratio comparable to aluminium 6061 and a better thermal shock resistance. It has been rigorously tested by NASA and ESA and is one of a handful of materials cleared for use on the International Space Station.
$480.00
Tax excluded
Quantity
Available to Order.

Compare now


Free shipping on orders over $500 to mainland US



Free lifetime remote support on all products

Logo

Z-PEI 9085

Featuring a strength to weight ratio comparable to aluminium 6061 and a better thermal shock resistance, Z-PEI 9085 (Ultem) is great for aerospace and automotive engineering applications. Z-PEI 9085 (Ultem) has been rigorously tested by NASA and ESA and is one of a handful of materials cleared for use on the International Space Station. Featuring very low Flame, Smoke and Toxicity, Z-PEI 9085 (Ultem) has a UL 94 V-0 flammability rating, making it perfect for printing flame retardant components.

9085 air ducting

Key Features

High flame retardancy- The flame retardancy rating of Z-PEI 9085 (Ultem) means it can be safely used in aerospace interiors. Featuring a flammability rating of UL94 V-0, meaning a vertically orientated Z-PEI 9085 (Ultem) part extinguishes within 10 seconds.

Flight ready- Strong enough for structural components in satellites and with potential for 46.77% weight reduction compared to traditional CNC'd aluminium parts.

Thermals- Z-PEI 9085 (Ultem) retains its mechanical properties up to 167°C which is on par with aerospace grade aluminium 6061. This material is perfect for automotive engines which run between 90°C to 105°C

9085 tested

Applications

9085 in cockpit

Z-PEI 9085 End Use Part in a Plane Cockpit

Aviation- Ducting, Seats, Cockpit

Space Industry- ISS Onboard equipment, CubeSat structural frames

Railroad Industry- Air ventilation system, Seat components

Material Properties

Tensile test

Z-PEI 9085 Tensile Test ISO 527

tensile test results

Z-PEI 9085 Tensile Test ISO 527 Results

For further information and advice on how Zortrax 3D Printers and polymers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Tensile Strength
54 MPa
Tensile Modulus
2050 MPa
Flexural Strength
90 MPa
Flexural Modulus
2170 MPa
Tensile Elongation
3%
Material Density
1.34g/cm3
