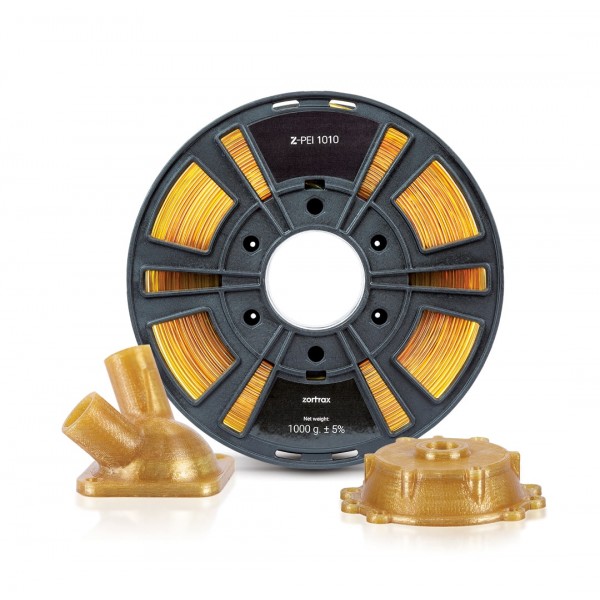

Zortrax Z-PEI 1010 1KG

Z-PEI 1010 (Ultem) features high rigidity, high Heat Deflection Temperature and broader chemical resistance than Z-PEI 9085 (Ultem), Z-PEI 1010 (Ultem) is ideal for the chemical industry, automotive and mass manufacturing.
$350.00
Tax excluded
Quantity
Available to Order.

Compare now


Free shipping on orders over $500 to mainland US



Free lifetime remote support on all products

Logo

Z-PEI 1010

Featuring higher rigidity, higher Heat Deflection Temperature and broader chemical resistance than Z-PEI 9085 (Ultem), Z-PEI 1010 (Ultem) is ideal for the chemical industry, automotive and mass manufacturing.

1010 part

Key Features

High temperature- The Heat Deflection Temperature of Z-PEI 1010 (Ultem) is 208°C, this is one of the highest among all high-performance polymers.

Chemical resistance- Z-PEI 1010 (Ultem) doesn't react with automotive fluid, aqueous solutions or halogenated hydrocarbons. This makes it suitable for chemical piping, heating and cooling systems or metal cleaning equipment.

Dimensional stability- Parts have little expansion or warping when exposed to temperature changes. This allows Z-PEI 1010 (Ultem) to be used for tight fitting, interlocking components.

1010 end use part

Applications

1010 application

Z-PEI 1010 End Use Thermostat housing

Chemical- Gaskets, pumps and heating component systems, Housings and auxiliary

Manufacturing- End-use heavy parts such as throttle bodies, Manipulators and robotic arm frames, Components used on degreasing machinery

Automotive- Machine housings working in high temperatures, Assembly jigs, Fixtures

For further information and advice on how Zortrax 3D Printers and polymers can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

Tensile Strength
56 MPa
Tensile Modulus
2500 MPa
Flexural Strength
110 MPa
Flexural Modulus
2510 MPa
Tensile Elongation
3%
