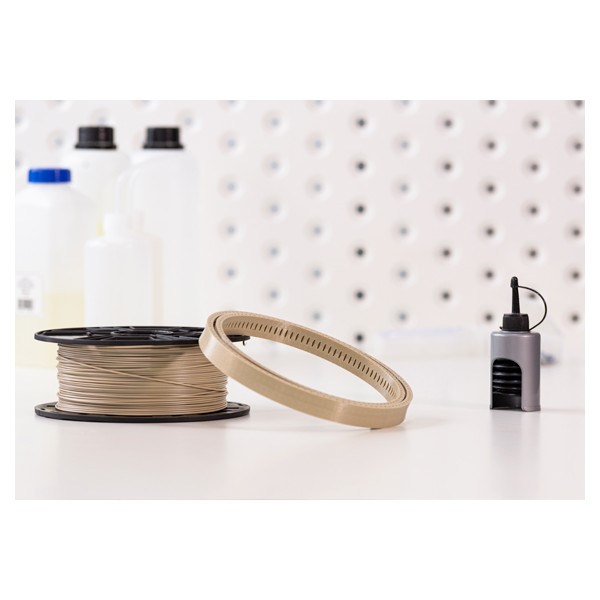

Zortrax Z-PEEK 1KG

Z-PEEK is compatible with Zortrax Endureal 3D printer and can be printed in single extrusion mode or with breakaway support structures printed in dual extrusion with Z-SUPPORT High Temperature. One of the strongest polymers available.

$700.00

Tax excluded

Quantity

Available to Order.

Compare now

Free shipping on orders over $500 to mainland US

Free lifetime remote support on all products

Product Description
Technical Specifications

Z-PEEK

One of the strongest polymers available. Z-PEEK has a strength to weight ratio comparable to stainless steel and thermal properties suitable for aerospace applications. Z-PEEK is compatible with Zortrax Endureal 3D printer and can be printed in single extrusion mode or with breakaway support structures printed in dual extrusion with Z-SUPPORT High Temperature.

Key Features

High wear resistance- PEEK has been confirmed to be suitable for PEEK/stainless steel gear pairs working at 1600 rpm for over 22 million cycles.

High radiation resistance-PEEK MPAC & SEED samples in the International Space Station experiment withstood 46 months of exposure to Low Earth Orbit environment. PEEK is also resistant to gamma rays.

Thermal properties-PEEK has been exposed to 500 cycles of heating up to 130°C and cooling to -70°C, this had no effect on their mechanical or chemical properties.

peek

Seals for piping in oil industry

Applications

PEEK gear

PEEK Printed Gear

Space- Components used on the International Space station

Aerospace- Out of cabin aircraft components

Mechanical- Radiation resistant and Abrasion resistant parts such as pressure resistant pumps, gears and gaskets
