Einscan Pro 2X 2020 Hand held 3D scanner
    • Einscan Pro 2X 2020 Hand held 3D scanner

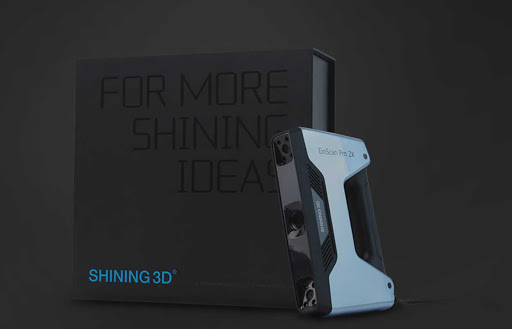

    EinScan Pro 2X 2020

    The newest addition to the EinScan lineup, the EinScan Pro 2X 2020 handheld scanner is portable, lightweight, and versatile for ultra-high precision results. Ideal for scanning small to medium sized objects with expert precision. iMakr offers 12 months of warranty, with business and technical support included with the purchase of EinScan 3D scanning solutions.

    $5,999.00
    Tax excluded
    Quantity
    On backorder - Contact for lead times



    Free lifetime remote support on all products



    Ask us about our discounts for education

    logo

    Adding to the popular EinScan range by Shining 3D is the new EinScan Pro 2X 2020. Awarded best handheld scanner and portable 3D scanner in 2019 by Aniwaa. The EinScan Pro2X 2020 offers incredible price to performance value, providing professionals with high quality 3D scans in rapid time. The EinScan Pro 2X 2020 is ideal for small to medium sized objects.


    Rapid Scanning

    Scanning speed (handheld rapid scan) of 30 fps 1.5 million points/second.

    Minimum point difference (Handheld HD / Rapid Scan) 0.2mm.

    Volumetric Accuracy (HandheldScan Mode) 0.1mm + 0.3mm

    Pro 2x 2020


    pro 2x 2020

    Ultra-High Accuracy

    Scan accuracy (fixed scan) of .04mm

    Volumetric accuracy of 0.1mm + 0.3mm/m

    Minimum point distance (handheld HD/ rapid scan) 0.2mm


    Versatile Scan Modes & Applications

    Scan Modes: Handheld Rapid Scan, Handheld HD Scan, Fixed Scan.

    Align Modes: Feature alignment, markers alignment, turntable coded targets alignment, and manual alignment.

    Pro 2x scan


    einscan pro.JPG

    EXSCAN PRO Software

    Featuring new UI, workflow and operation mode. Ability to set the resolution option afterwards, this improves scanning efficiency. Output standard files: STL, OBJ, PLY, 3MF, ASC and P3



    Lightweight & compact size weighing just 1.13kg

    Colour

    Full colour & texture scan

    Software

    New scanning software EXSCAN PRO. Compatible with STL, OBJ, PLY, 3MF, ASC & P3



    For further information and advice on how Shining 3D & EinScan scanners can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Request a callback

    Data sheet

    File Output Format
    OBJ; STL; ASC; PLY; P3 ; 3MF
    Scan Accuracy
    Handheld HD Scan: up to 0.045 mm | Handheld Rapid Scan: up to 0.1 mm | Fixed Scan with Turntable: 0.04 mm(single shot accuracy) | Fixed Scan without Turntable: 0.04 mm(single shot accuracy)
    Light Source
    LED
    Range of Single Capture
    150*120 mm — 250*200 m
    Scan Speed
    Handheld HD Scan: 10 fps 300,000 points/s | Handheld Rapid Scan: 30 fps 500,000 points/s | Fixed Scan with Turntable: Single Scan<1s | Fixed Scan without Turntable: Single Scan<1s
    Supported OS
    Windows7; Windows8; Windows10; (64bit)
    Recommended System Requirements
    Graphics card: Quadro card P1000 and above or NVIDIA GTX660 and higher; processor: Intel (R) xeon E3-1230, Intel (R) I5-3470, Intel (R) I7-3770; interface: high-speed USB 3.0; memory: 8G
