Delta WASP 3MT Industrial 4.0 (110v)

    The Delta Wasp 3MT has been upgraded to make 3D printing huge models even easier than ever. The Industrial 4.0 line adds new features, such as a touchscreen interface, monitoring camera and a newly designed and improved pellet extrusion system. The Delta Wasp 3MT Industrial 4.0 is available to order with either the pellet extruder or Spitfire filament extruder installed.

    $40,000.00
    Tax excluded
    Extruder Version
    Quantity
    Available to order.



    Free lifetime remote support on all products



    Ask us about our discounts for education

    iMakr Verdict:

    The Wasp team has focused on ease of use with the new Industrial 4.0 line. Improvements such as WiFi connectivity, touchscreen, platform auto-calibration and a brand new pellet extrusion system now make printing huge parts in a wide variety of materials easier than ever. The Spitfire extruder gives the option to print with greater detail, or take advantage of the lower priced pellet feedstock by using the pellet extruder. One of the features that we love is the Auto-feeder pellet tank. This allows the pellet hopper to be replenished without opening the door of the machine and interrupting the print job.

    Key Features:

    • Ø1m x 1m build volume
    • Touchscreen interface
    • Build platform auto-calibration
    • WiFi, USB and Ethernet connectivity
    • Newly designed and improved pellet extrusion system
    • Thermal and acoustic insulation
    • Monitoring camera
    • Filament and pellet run-out detection
    • Auto-feeder pellet tank. Replenish pellets without opening the door of the machine.
    • Simplify3D Software included
    New design pellet extruderDeltaWasp 3MT Pellet Extruder

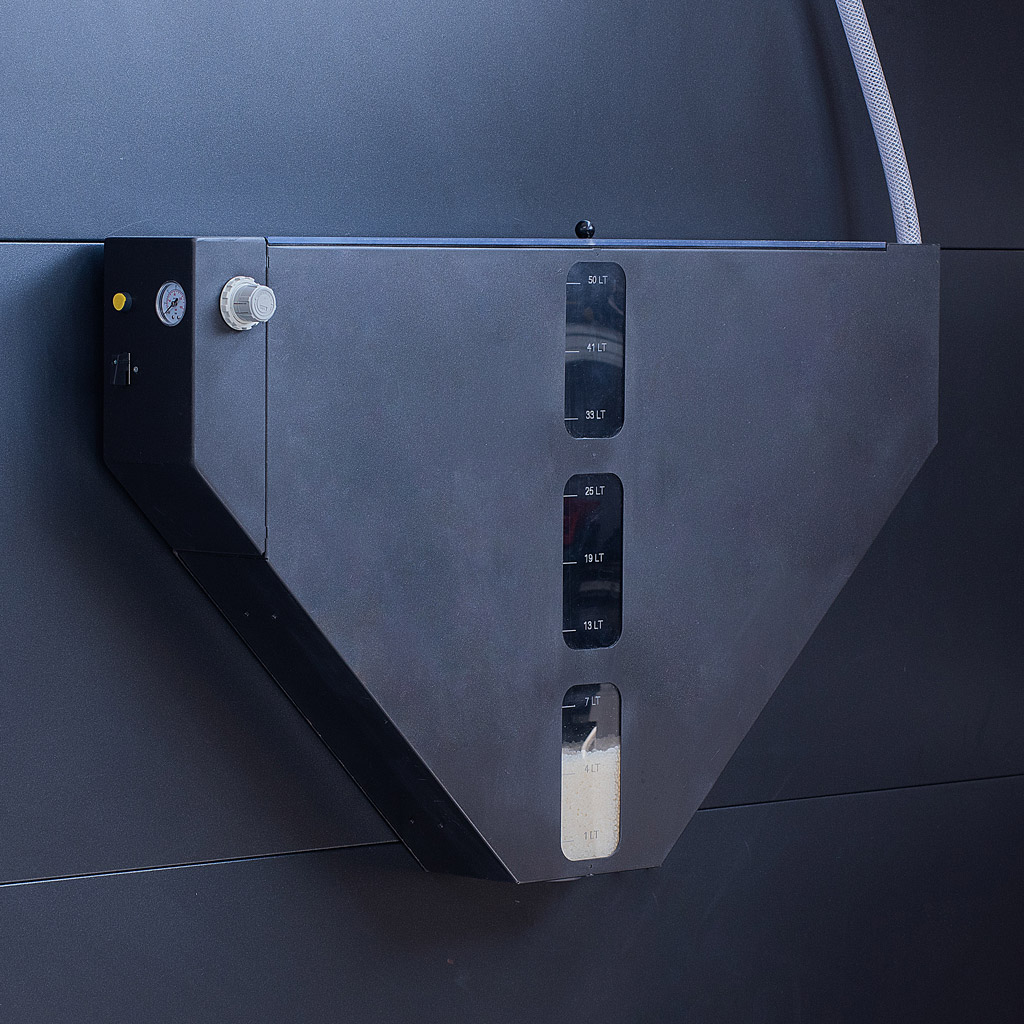

    Auto-feeder pellet tankDeltawasp 3MT Auto-Feeder Tank
    Spitfire extruderDeltaWasp 3MT Spitfire Extruder

    The 3MT Industrial 4.0 is shipped disassembled and requires assembly on-site.

    Data sheet

    Printing Technology
    FFF/FDM
    Build Volume W x D x H (mm) // W x D x H (inch)
    Ø1000mm x 1000mm // Ø39 inch x 39 inch
    Layer Thickness / Print Precision
    0.100mm (Min)
    Nozzle Diameter (mm)
    1.2mm Spitfire Extruder // 3mm Pellet Extruder
    Printing Speed
    200mm/s Max
    Filament Diameter (mm)
    1.75mm Spitfire Extruder // 2-6mm Pellet size for Pellet Extruder
    Weight
    250kg
    Printing Temperature
    Up to 350°C
    Material type
    PLA, ABS, PETG, TPU, PP, PA
    Platform Levelling
    Auto-calibration
    Dimensions
    2150mm x 2350mm x 3050mm
    Heated Platform
    Rectified Aluminium - Up to 110°C
    File Format
    .STL, .OBJ
    Connectivity
    USB, WiFi, Ethernet
    Printer Software
    Simplify3D, Cura
    Software Compatibility
    Windows, Mac, Linux
    Input Voltage / Power
    100-120v
