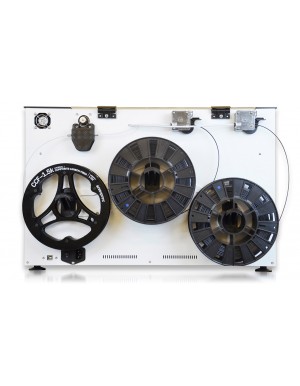

Anisoprint Composer A3

    Reduce the cost and weight of jigs, fixtures and end-use parts, while maintaining mechanical properties, with the Composer A3 from Anisoprint.

    Unique Composite Fibre Coextrusion (CFC) technology allows the printing of continuous carbon fibre directly into a 3D printed part, significantly increasing part strength when compared with printing polymers alone.

    Angebot anfordern


    Kostenloser lebenslanger Remote-Support für alle Produkte


    Fragen Sie uns nach unseren Bildungsrabatten

    iMakr Verdict

    We believe Anisoprint’s unique method of 3D printing with continuous fibres on the desktop is superior to anything else we’ve seen on the market. With print outputs up to 20 times stronger than plastic, up to 7 times lighter than steel and up to 2 times stronger and lighter than aluminium, the Composer printers are an ideal option for anyone wishing to produce high-strength parts or jigs and fixtures and will likely be of particular interest to engineers and designers in industries such as aerospace, automotive and manufacturing.

    Key Features:

    • Composite Fibre Co-extrusion Technology
    • Dedicated Aura Software
    • Open Materials

    CFC Technology

    Composite Fibre Coextrusion (CFC)

    Anisoprint's patent-pending technology utilises continuous fibres to reinforce thermoplastics and produce end-use parts that are stronger, lighter and cheaper than parts made from other materials.

    What makes Anisoprint's solution unique is the use of composite materials - such as Carbon Fibre and Basalt Fibre - which are prepregnated with a thermoset and then extruded in combination with a thermoplastic.

    The Composer's ability to print these coextruded polymers in a lattice or grid greatly increases part strength, while keeping weight and cost to to a minimum.

    CFC Print

    CFC Close-up

    Dedicated Aura Software

    The Anisoprint Aura slicing software prepares 3D models for printing with the Composer CFC-printers, as well as conventional FFF-printers.

    Generate, adjust and fine-tune reinforcing fibre trajectories to suit the geometry of your part and maintain or improve mechanical properties in particular areas.

    Model processing is fully automated and executed using a local computer ensuring confidentiality and safety of data.

    Aura Software

    Open Materials

    Open Materials

    Use the filament material or brand which works for you and your parts.

    The Composer series of printers is compatible with polymer filaments requiring processing temperatures of up to 270°C. Including PLA, PETG, PA and PC


    Technische Daten

    Fused Filament Fabrication
    Bauraum W x T x H (mm) // W x T x H (inch)
    420 х 297 х 210mm // 16.5 x 11.7 x 8.3 inch
    Schichtdicke / Druckpräzision
    60 micron
    Düsendurchmesser (mm)
    0.4mm (FFF)
    Up to 80mm/s (FFF), Up to 10mm/s (CFC)
    Filamentdurchmesser (mm)
    270°C Max
    PLA, PETG, PA (Nylon), PA-CF (Carbon filled Nylon), ABS
    Druckbett Ausrichtung
    Manual (assisted)
    720 mm х 630 mm х 490 mm
    Besondere Eigenschaften
    4.3'' touchscreen
    Beheitzte Plattform
    Glass build plate up to 120°C
    SD Card USB Cable
    Drucker Software
    Anisoprint Aura. Cura + Slic3r (FFF only)
    Windows 7 +
    Eingangsspannung / Strom
