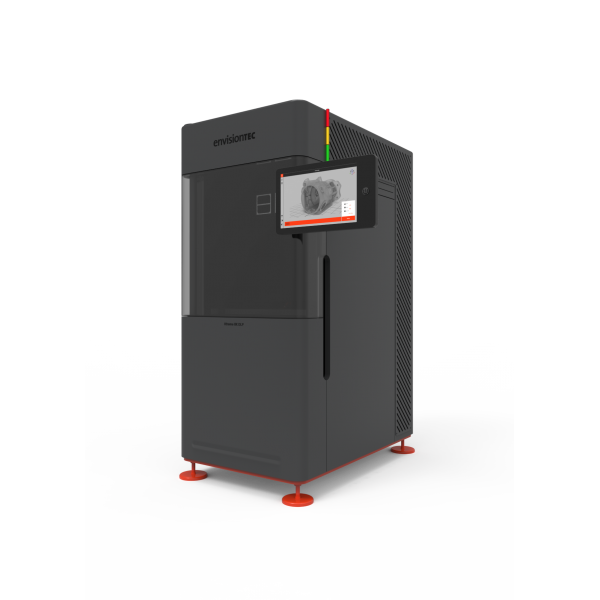

EnvisionTEC - Xtreme 8K DLP

    The Xtreme 8K DLP by EnvisionTEC is considered as one of the largest sized production-grade DLP 3D printers in the world. Because of its exceptional size, this 3D printer is able to print high quality and precise extensive prints at a rapid speed.

    Request a quote



    Free shipping on orders over $500 to mainland US



    Free lifetime remote support on all products

    With the Xtreme 8K DLP printer by EnvisionTEC, high quality and precise prints can be printed at a large size and at rapid speed. In order to produce these prints, EnvisionTEC has installed dual 4K projector DLP technology, allowing for high precision on complex 3D prints. Its features such as a heated material vat also allows for prints to be made in a wide range of materials and can be used for various use-cases including industrial and medical applications. When delivered, the printer is installed with its own user-friendly software, EnvisionTEC’s Envision One RP, which allows a perfect model production as well as automatic generation of support. Because of the Xtreme 8K DLP's unparalleled surface finish and precise productivity, this EnvisionTEC printer is one of the leading printers available on the market.

    8k


    Diverse Applications

    The Xtreme 8K DLP Printer by EnvisionTEC excels in a wide range of industries including Aerospace, Automotive, Manufacturing, Medical Devices, Consumer Goods, Education and much more.

    print 1
    print 2
    print 3
    print 4

    Technical Specifications

      Build envelope

          450 x 371 x 399 mm

       Voxel size XY

         150 µm

       XY Voxel Size With ERM and Pixel Tuning

        100 µm

      Print speed (material dependent)

         Up to 1.5 inches/hour

      Warranty

       1 year

    For further information and advice on how EnvisionTEC can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Request a callback

    EnvisionTEC

    Data sheet

    Printing Technology
    DLP
    Weight
    499 kg (1100 lbs.)
    Dimensions
    1420 x 1052 x 2350 (55.9 x 41.42 x 92.52 in)
    Compatible materials
    E-3172 , E-IND147
    Operating Voltage
    220 Volt, Single Phase, 15 Amps : 110 Volt, Single Phase, 15 Amps
