Raise3D Pro2

    Competitive, profitable and scalable: The capabilities of the Raise Pro2 dual extruder 3D printer are an upgrade from its award-winning predecessor and provide the next generation of high-performance additive manufacturing.

    Tax excluded
    Available to Order.


    Free shipping on orders over $500 to mainland US


    Free lifetime remote support on all products

    The best from Raise3D gets better with the Raise3D Pro2 dual extruder 3D printer! Featuring electronically retracting nozzles, dual colour/material printing is cleaner and more reliable than ever before, and with hot ends capable of reaching 300C, a huge range of materials can be printed including Nylon, PC and PETG with a precision virtually unmatched in the industry. Raise3D has also transformed the build platform system with a magnetically secured plate made from aerospace-grade aluminium, an improved 4+9 points locking system and silicone heater capable of reaching 110°C. The combination of large build volume, reliability, material range and print quality makes the Raise3D Pro2 an excellent general purpose workhorse 3D printer for any office, workshop or prototyping lab.

    Key Features:

    Cleaner Dual Extrusion, High Resolution, Safer Workspace.

    The Raise3D Pro2 is capable of achieving stunning high-resolution prints, and with the addition of the new nozzle retraction system, dual material/colour prints are much cleaner. An integrated exhaust fan and HEPA filter removes potentially harmful particulates from the build area.

    Raise3D Electronic Driven Dual Extrusion with Retracting Nozzles

    Electronically-Driven Retracting Nozzles

    New to the Pro2 is an electro-mechanical system which automatically lifts up a nozzle when it is not in use. Ideal for dual colour or dual material printing.

    • High repeatability (<0.005m, 5 micron)
    • High speed (<1 second switching time)
    • 1.5mm lifting distance, compatible with flexible filaments
    • Reliability tested over 100,000 times

    Raise3d HEPA Filter and exhaust fan

    Air Filtration

    The integrated quiet fan and HEPA filter removes particulates from the inside of the build chamber for a cleaner and safer working environment.

    Raise3D High Resolution Prints

    High Resolution and Fine Detail

    The Raise3D motion controller board features a next generation ARM Cortex M7 and 256 micro-step motor drivers for super smooth motion and precise positioning

    • Unmatched layer resolution: 0.01 layer thickness
    • Precise positioning: 0.0125mm positioning resolution on x/y axis

    Large Build Volume + Multiple Fail-Safe Functions

    Print large parts with confidence. Essential reliability systems such as Power Loss Print Resume, Monitoring Camera and Filament Run-out Detection are built-in as standard

    Raise3D Big Build Volume

    Large Build Volume

    The big build volume is ideal for printing large parts or medium volume batch production.

    • 305 x 305 x 300mm (12 x 12 x 11.8 inch) build volume for single extrusion
    • 280 x 305 x 300mm (11 x 12 x 11.8 inch) build volume for dual extrusion

    Raise3D Extruder with Filament Run-Out Sensor

    New Extruder with Filament Run-Out Sensor

    Better grip. No slipping. Worry-free prints.

    • Dual gear-driven extruder gives 4× increased torque performance for reliable extrusion and faster printing speeds
    • An optical sensor detects if the filament has run out during a print job
    • Hot ends capable of reaching up to 300°C and with additional fan cooling

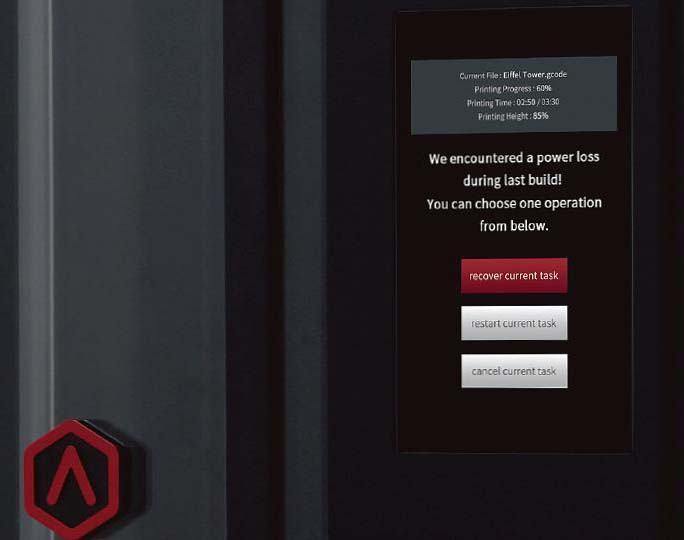

    Raise3D Second Generation Power Loss Resume

    Second Generation Power Loss Resume

    In the event of power loss or interuption, the last position of the print head is saved so that the print job can resume from the same place when power is restored. Never lose a print.

    Optimised and Intuitive User Experience.

    The Raise3D Pro2 includes a range of features to make your 3D printing experience as easy as possible.

    PC Monitors Displaying Ideamaker Software

    IdeaMaker Software

    The IdeaMaker slicing software is easy to use with its one-click parameter optimisation and boasts some impressive advanced features:

    • Customisable support
    • Variable settings by region - Select different settings for different regions and layers of a model
    • IdeaMaker Library access to template files - Download printing profiles for the filament you are using, or create your own profiles and share with the community

    Raise3D New Build Plate System

    New Build Plate System

    Excellent warp prevention. Even heat distribution. Longer lifetime.

    • Aerospace grade material
    • High-temperature silicone heating bed
    • Magnetic hold aluminium bed
    • Improved 4+9 points lock system

    Raise3D Touchscreen

    7-Inch Touchscreen

    The 7-inch touchscreen provides an enhanced user experience with features such as:

    • Visual Model Selection
    • Print progress display
    • Access to basic and advanced settings
    • On-screen calibration assistance

    To find out more about the Raise3D Pro2 range of 3D printers, please call us on the telephone number at the top of this page or arrange for one of our advisors to call you back via the button below:

    Request a callback

    Data sheet

    Printing Technology
    Build Volume W x D x H (mm) // W x D x H (inch)
    Single Extrusion: 305 x 305 x 300mm (12 x 12 x 11.8 inch) Dual Extrusion: 280 x 305 x 300mm (11 x 12 x 11.8 inch)
    Dual Nozzle with electronic lifting system
    Heated Bed
    Up to 110°C
    Nozzle Diameter (mm)
    0.4 mm (Default), 0.2/ 0.6/ 0.8/ 1.0 mm (Available)
    Filament Diameter (mm)
    Printing Temperature
    Up to 300°C
    620 x 590 x 760mm (24.4 x 23.2 x 29.9 inch)
    Special Features
    Power loss print resume, 7-inch touchscreen, HEPA filter, Filament run out detection
    Slicing Software
    Compatible materials
    PLA, ABS, HIPS, PC, TPU, TPE, NYLON, PETG, ASA, PP, PVA, Glass Fibre, Carbon Fibre, Metal Filled, Wood Filled
    File Format
    STL, OBJ, 3MF
    WiFi, USB, LAN
    Software Compatibility
    Windows, MacOS, Linux
    Input Voltage / Power
