• Artec Leo 3D Scanner

Artec Leo

With the Artec Leo hand-held 3D scanner, capturing highly accurate scan data is as easy as making a video. The multiple-award-winning wireless 3D scanner from Artec3D has been upgraded with a number of new features to offer faster processing speeds and even greater accuracy. The best has just got better!

Request a quote

Compare now

Free shipping on orders over $500 to mainland US


Free lifetime remote support on all products

Artec 3D Logo

Artec Leo

The world's first wireless professional 3D scanner has received several under-the-hood enhancements to offer a faster, more reliable and more accurate 3D scanning experience.

An outstanding feature-set including AI-driven processing, a thoughtfully designed interface and cable-free operation makes obtaining high-accuracy scans a breeze.

Request Demo

Hand holding the Artec Leo

Easy to use

Multiple languages

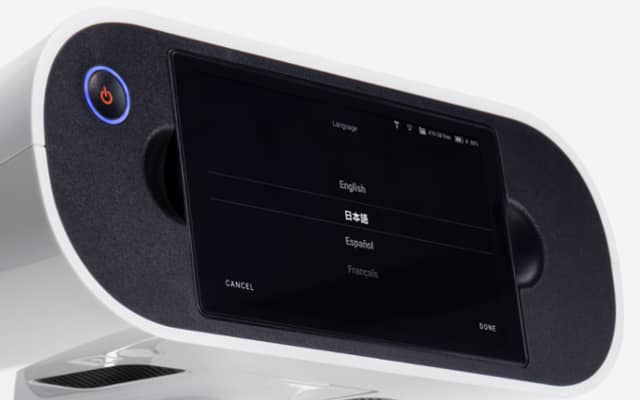

Multi-Language Operation

The interface of the scanner can be operated in English, Spanish, French, German, Chinese and Japanese.

Touchscreen interface

Touch Screen Interface

Manage your device, scanning process and scan data with an intuitive interface.

On-device scan previews

3D Model Preview

Check the scan data in real time. Visual guides display the quality of the data in different regions of your scan.

AI assistec scanning

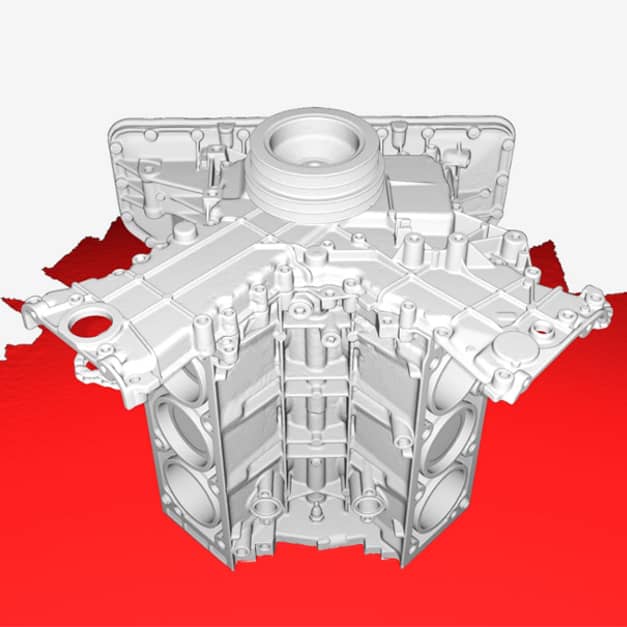

Smart Scanning

AI technology helps you to capture only what is necessary - reducing processing time and clean-up.

Distance colour map

Color Distance Map

The Artec Leo offers simple guidance for optimizing the scanning distance. The target surface is displayed in blue on the touch screen if the scanner is too far away, displayed in red if too close and displayed in green when at the correct distance.

Highly Accurate Scan Data

Factory calibration certificate and board

Factory Calibration

Each Artec Leo 3D scanner is fully calibrated before leaving the factory - ensuring the best possible scan quality straight out of the box.

Calibration Kit

Purchase the Artec Leo Plus bundle to include a calibration kit which allows users to maintain scan accuracy over time and for different environments.

Temperature Control

Automatic software control regulates the temperature of the scanner and ensures that accuracy is not affected by temperature changes.

New Artec Leo Processor

2x The Processing Power

The new NVIDIA Jetson TX2 chip offers twice the processing power and has doubled the on-board storage when compared to its predecessor. In addition, graphics processing is now 30% faster and RAM specs have been significantly improved to offer increased transfer speeds.

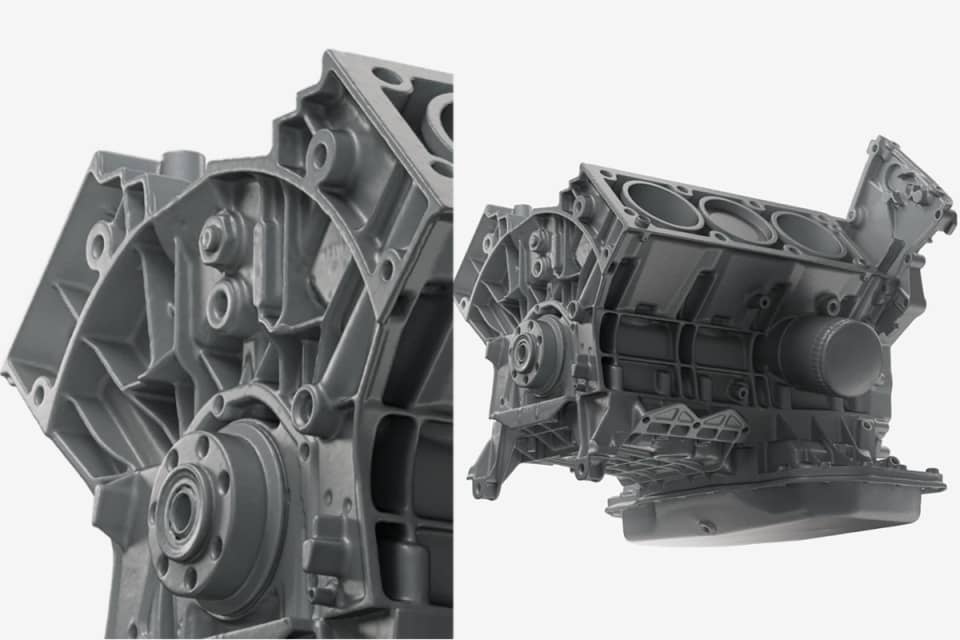

High Definition Scanning

Double the resolution of your scan data and remove noise with HD Mode. An AI-powered neural engine offers resolution of up to 0.2mm for capturing sharp edges and hard to reach areas.

Example of Artec HD mode

Vibrant Colors and Textures

The Artec Leo features advanced technology that adjusts flash intensity to achieve evenly-lit 3D models, even in unstable lighting conditions.

Level-up your CGI photogrammetry by combining scanned data from the Artec Leo with photos from your camera for amazingly lifelike models with perfect geometry.

Artec 3D colour and texture scanning

Powerful Software

Artec Studio Software Screenshot

Artec Studio Software

Seamlessly transfer scan data to Artec's powerful Studio software. An intuitive interface allows mesh-to-CAD analysis, easy primitive-fitting, and more processing operations.

New remote control capabilities introduce further flexibility. Remotely access the Artec Leo via a browser on a mobile device to monitor the scanning process, control the scanner, and manage projects and target clouds.

With the scan-to-cloud feature, you are no longer limited by location, or hardware. Team members can collaborate remotely and contribute their expertise to the same project. Your scans can process while you travel back from the field, and parallel projects can run simultaneously.

A Wide Range Of Applications

Highly Versatile

The Artec Leo excels in its versatility and is capable of capturing objects from 20cm to 200cm in size, and can even capture a whole room or crime scene (paired with an appropriately powerful computer).

Typical objects and applications:

  • Gearboxes, castings
  • Automotive parts
  • Turbines, ship propellers, small boats
  • Statues, and the human body
  • Furniture and room interiors
  • Crime scenes

Scanning a car with Artec Leo

Artec Leo for interior design

Artec Leo for crime scenes

Artec Leo for medical and CGI

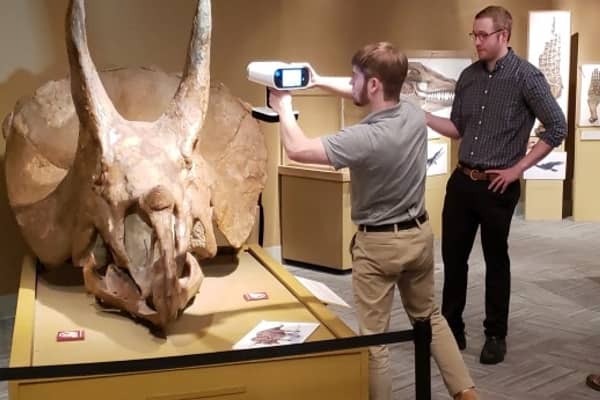

Artec Leo for art and research

Technical Specifications

3D Point Accuracy 0.1mm Volume Capture Zone 160000cm^3 3D Exposure Time 0.0002s
3D Resolution 0.2mm Working Distance 0.35-1.2m 2D Exposure Time 0.0002s
3D Accuracy/Distance 0.1mm + 0.3mm /m Data Acquisition Speed 35,000,000 points/s Texture Resolution 2.3mp
Linear Field of view HxW @ closest range 244 x 142mm 3D Reconstruction Rate (Real time fusion) 22 fps Colours 24bpp
Linear Field of view HxW @ furthest range 838 x 488mm 3D Reconstruction Rate (3D Video Recording) 44 fps 3D Light Source VCSEL
Angular Field of view HxW 38.5 x 23° 3D Reconstruction Rate (3D Video Streaming) 80 fps 2D Light Source 12 White LED

Computer Requirements

A computer is needed only for data processing. Scanning does not require a computer.

Recommended PC Requirements Intel Core i7 or i9, 64+ GB RAM, NVIDIA GPU with 8+ GB VRAM, CUDA 6.0+
Minimum PC Requirements

HD Mode: Intel Core i7 or i9, 32 GB RAM, NVIDIA GPU with CUDA 6.0+ and at least 4 GB VRAM

SD Mode: Intel Core i5, i7 or i9, 32 GB RAM, GPU with 2 GB VRAM

For further information and advice on how Artec 3D scanners can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

Request a callback

Data sheet

1.8 kg
File Output Format
Power Supply
Built in battery pack with charger
WiFi / Ethernet
