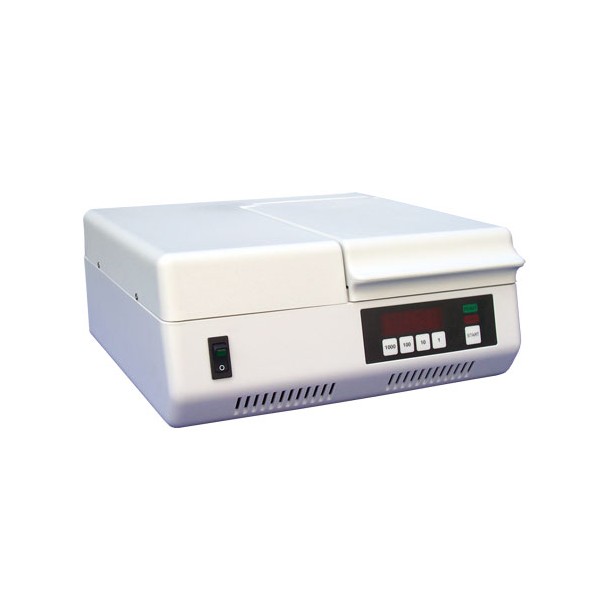

NK-Optik - Otoflash G171

    The Otoflash G171 is designed for otoplastic/ hearing aids and jewelry as its application involves the photopolymerisation of light-curable substances. Curing also can be done on 3D printing/ rapid manufacturing components after they are made; for instance they allow the manufacturing and processing of various light curing materials and repairs who have the appropriate materials and lacquering for the Otoflash G171.

    2.125,00 €
    Choose Otoflash G171


    Kostenloser lebenslanger Remote-Support für alle Produkte


    Fragen Sie uns nach unseren Bildungsrabatten

    The Otoflash G171 allows a short curing process as when in operating mode, the two light bulbs placed at the bottom of the polymerisation chamber produces ten flashes per second with a strong light radiation at 280-580 nm. This causes the materials to be cured at a higher standard, keep its attributes and reduce its residual monomer content (inhibition layer). The Otoflash package also includes a protective gas appliance (N2) (optional), integrated elapsed time meter and adjustable operational voltages (USA: 117 volt/60 Hz and Japan: 100 volt/60Hz).

    Graph G171

    Spectral Range Otoflash G171

    nkoptic sketch

    Initial Operation of Device


    • Digital timer: adjustable from 1 to 9.999 flashes
    • Flash frequency: 10 flashes per second
    • Average flash power: 200 watt
    • Spectral distribution: 280-700 nm, maximum between 400 and 500 nm
    • Rated frequency: 50/60 Hz
    • Capacity: 4 BTE-aids or 6 ITE-aids
    • Dimensions of polymerisation chamber: 120 x 120 x 50 mm
    nkoptic g171

    For further information and advice on how NK-Optik can benefit your business, please do not hesitate to get in touch with one of our advisors by calling the telephone number at the top of the page, or by clicking the button below and requesting a call-back:

    Rückruf anfordern

    Technische Daten

    2 flashbulbs at 100 w
    Operating Voltage
    100, 117, 230 volt AC, adjustable by switch
    Product Dimensions
    310 x 310 x 140 mm
    Product Weight
    250 Watt
